2-530678-6

Edgeboard Connectors Overview

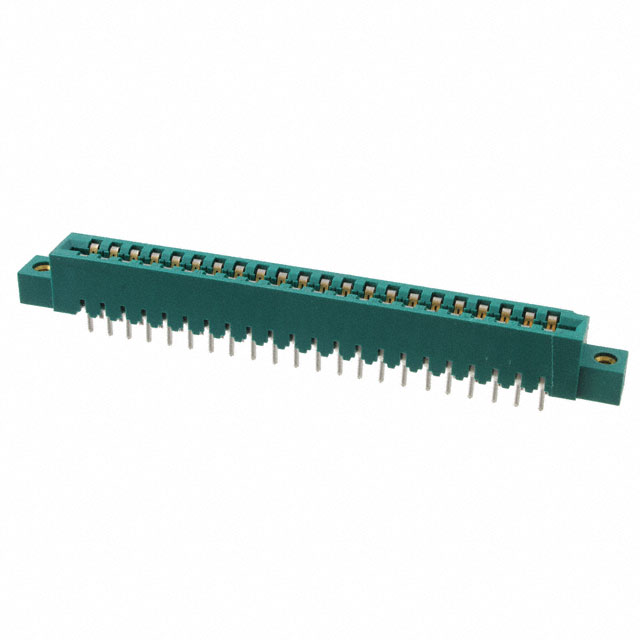

The 2-530678-6 is a dual female card edge connector manufactured by TE Connectivity AMP Connectors. It features 44 positions with a 0.156-inch (3.96 mm) contact spacing, designed for reliable board-to-board interconnection. The component utilizes a solder termination method and includes mounting ears to secure the connector to the printed circuit board. Constructed for high-density applications, it provides stable electrical performance in demanding environments.

Edgeboard Connectors Feature Summary

• Dual female configuration for robust board-to-board signal transmission
• Integrated mounting ears ensure mechanical stability during operation
• Solder termination facilitates permanent PCB attachment

Edgeboard Connectors Applications

• High-density electronic assembly interconnections
• Industrial control system backplanes
• Telecommunications equipment modules

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version and compliance documentation prior to procurement. Confirm that the 0.156-inch pitch matches the target PCB layout requirements. Ensure the solder termination type aligns with the manufacturing process capabilities. Cross-reference the manufacturer part number to avoid substitution errors.

Edgeboard Connectors Selection Notes

Select this component when a dual female interface with 44 contacts is required. The 0.156-inch spacing accommodates standard trace widths. Mounting ears provide necessary support for heavy boards. Verify compatibility with mating card edge thicknesses before finalizing the design integration.

Edgeboard Connectors Part Context

This connector belongs to the TE Connectivity AMP series of card edge solutions. It serves as a critical interconnect element in complex electronic systems requiring high pin counts. The design emphasizes mechanical reliability alongside electrical continuity for long-term operational stability.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity documentation for verified substitute part numbers. Generic equivalents may not match the precise 0.156-inch pitch or mounting ear specifications. Validate dimensional tolerances and material composition before considering any alternative components.
