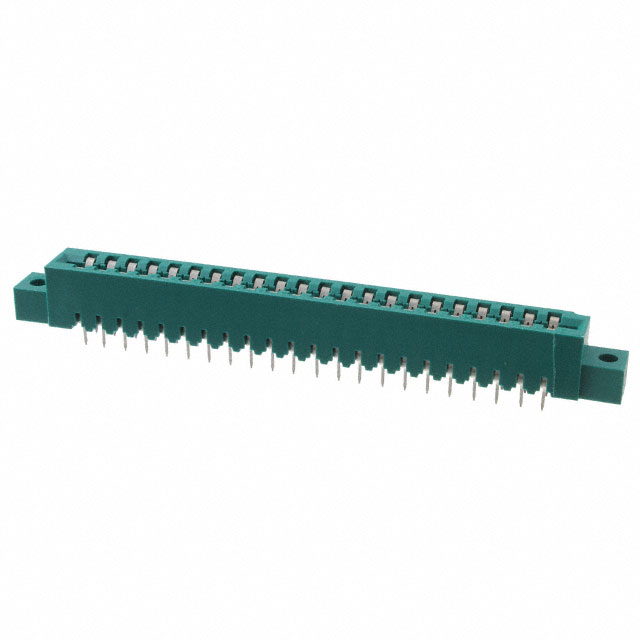

2-530689-6 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN EDGE DUAL FMALE 44POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 2-530689-6
- Description：CONN EDGE DUAL FMALE 44POS 0.156
- Series：-
- Mfr：TE Connectivity AMP Connectors
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：44
- Card Thickness：0.055" ~ 0.070" (1.40mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Phosphor Bronze
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-
Edgeboard Connectors datasheet and documents for 2-530689-6
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors part number 2-530689-6 is a dual-edge female connector designed for high-density board-to-board applications. It features 44 positions with a 0.156-inch (3.96 mm) centerline pitch and a row-to-row spacing of 5.08 mm. The connector utilizes flow solder posts for reliable termination and includes mounting ears to ensure secure mechanical attachment during assembly.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for robust signal integrity
- Flow solder post design ensures consistent electrical connections
- Integrated mounting ears provide enhanced mechanical stability
Edgeboard Connectors Applications
- High-density backplane interconnects
- Motherboard expansion slots
- Industrial control system boards
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer datasheet to confirm exact pin count, plating material, and housing color. Ensure compatibility with mating edge cards regarding thickness and tolerance. Confirm RoHS compliance status if required by project specifications before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a dual-sided edge connector with 44 positions is required. Verify that the 0.156-inch pitch matches the target PCB layout. Consider the flow solder termination method for wave or selective soldering processes. Evaluate the need for mounting ears based on the mechanical stress requirements of the application environment.
Edgeboard Connectors Part Context
This component belongs to the TE Connectivity AMP Connectors portfolio, specializing in high-speed and modular interconnect solutions. The series is engineered for demanding electronic environments requiring reliable data transmission. It supports complex circuit architectures found in modern computing and communication hardware systems.
Edgeboard Connectors Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer directly for cross-reference information or updated product line recommendations.
