2-5530843-0

Edgeboard Connectors Overview

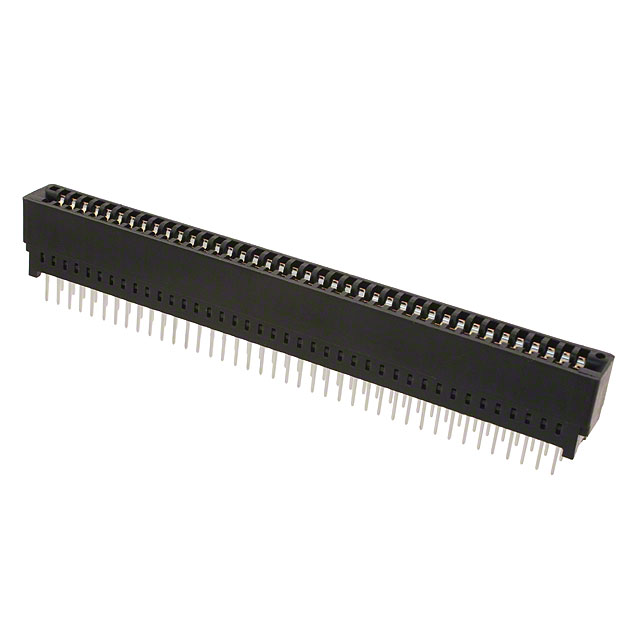

The 2-5530843-0 is a Standard Edge II series card edge connector manufactured by TE Connectivity AMP Connectors. It features an 80-position, dual-sided female contact configuration with a 0.100-inch (2.54 mm) pitch. The connector utilizes gold-plated phosphor bronze contacts and a black polyester housing. Designed for vertical board installation via through-hole termination, it supports card thicknesses ranging from 0.054 to 0.070 inches. The component operates within a temperature range of -55°C to 85°C and complies with RoHS standards.

Edgeboard Connectors Feature Summary

• Dual-sided female contact design for high-density signal routing
• Gold-plated phosphor bronze contacts ensure reliable conductivity
• Vertical through-hole termination for secure PCB mounting
• Polyester housing provides structural stability and insulation

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Computing hardware module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official TE Connectivity datasheet to confirm pin count, orientation, and plating specifications. Ensure compatibility with the target printed circuit board layout and mating card dimensions. Confirm that the selected variant meets all required environmental and regulatory compliance standards for the intended application environment.

Edgeboard Connectors Selection Notes

Select this connector when a high-pin-count, dual-edge interface is required for vertical mounting applications. The 0.100-inch pitch accommodates standard trace widths while providing robust mechanical retention. Consider the gold plating for corrosion resistance in demanding environments. Verify that the housing material and thermal ratings align with the operational requirements of the host system.

Edgeboard Connectors Part Context

This component belongs to the Standard Edge II family, designed for general-purpose card edge applications. It offers a balance of electrical performance and mechanical durability. The series is widely used in modular electronic systems requiring reliable interconnection between daughterboards and motherboards. The specific model number denotes the unique combination of position count and termination style within the product line.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support or authorized distributors for cross-reference information regarding equivalent components with matching electrical and mechanical specifications.
