2-5530843-3

Edgeboard Connectors Overview

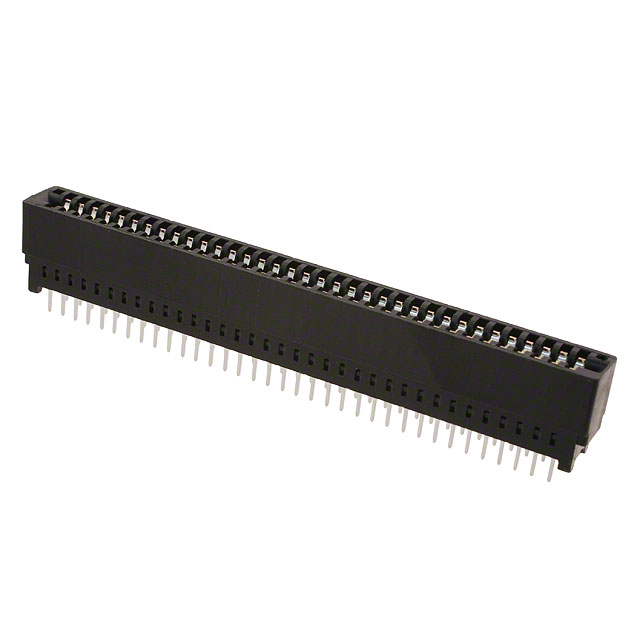

The TE Connectivity AMP Connectors part number 2-5530843-3 is a standard card edge connector belonging to the SEC II series. It features a dual-edge female configuration with 70 positions arranged in two rows of 35 contacts each. The connector utilizes a 2.54 mm (100 mil) pitch and is designed for vertical through-hole mounting. Contact surfaces are gold-plated, and the housing is constructed from black polyester material.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Vertical orientation facilitates standard PCB integration
• Gold plating ensures reliable signal transmission

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• General-purpose electronic module connections

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version corresponding to the manufacturing date code, as product specifications may evolve. Confirm that the receiving facility has appropriate electrostatic discharge protection protocols. Ensure storage conditions align with manufacturer recommendations to maintain contact integrity prior to assembly.

Edgeboard Connectors Selection Notes

Select this component when a high-density vertical interface is required for double-sided edge cards. Evaluate the mechanical retention needs against the through-hole termination style. Consider the thermal management capabilities inherent to the polyester housing and gold contact finish for the intended operational environment.

Edgeboard Connectors Part Context

This connector is part of the Standard Edge II family, which provides robust solutions for high-reliability applications. The series is engineered to meet stringent performance standards for industrial and commercial electronics, offering consistent electrical characteristics across various position counts.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 2-5530843-0 and 2-5530843-7. Verify pin count and voltage ratings before swapping to ensure compatibility with existing circuit designs.
