2-6609028-1

Overview

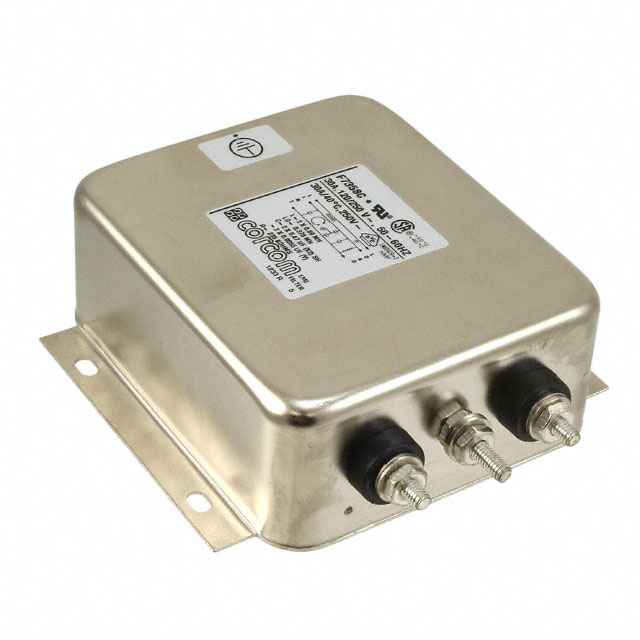

The TE Connectivity Corcom Filters model 2-6609028-1 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a current rating of 30 A and an AC voltage rating of 250 VAC, operating at frequencies of 50 Hz or 60 Hz. The unit utilizes a stud terminal connection style for secure installation. This component belongs to the K series, which covers the 20-40 Amp range, and is certified by UL.

Feature Summary

• Single-phase EMI/RFI filtering configuration
• Chassis mount design with stud terminals
• General purpose application suitability

Applications

• Industrial machinery power input stages
• Commercial equipment noise suppression
• Power distribution units requiring high current filtering

Procurement Notes

Verify the specific datasheet version for the 2-6609028-1 part number to confirm mechanical dimensions and certification marks. Ensure that the mounting hardware matches the stud terminal specifications. Confirm compliance requirements such as UL listing are explicitly documented in the official manufacturer data before finalizing procurement decisions.

Selection Notes

Select this component when a single-phase filter rated for 30 A is required. The chassis mount style with stud terminals dictates the enclosure integration method. Verify that the 250 VAC rating aligns with the system's maximum operating voltage. Consider the physical footprint constraints associated with the K series housing dimensions during the design phase.

Part Context

This filter is part of the TE Connectivity Corcom Filters K series, specifically engineered for applications requiring current ratings between 20 and 40 Amperes. The series provides standardized solutions for electromagnetic interference suppression in power lines, ensuring regulatory compliance for electronic equipment.

Replacement Considerations

Publicly confirmed substitute part numbers for 2-6609028-1 were not found in the provided documentation.
