2-6609028-2

Overview

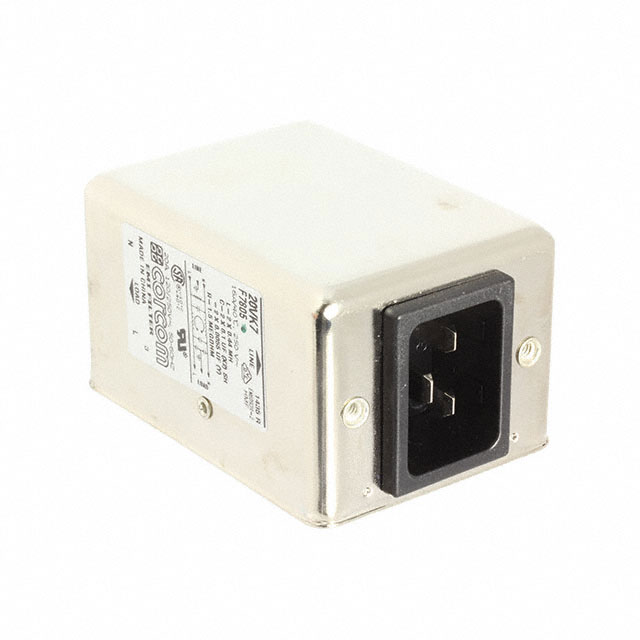

The TE Connectivity Corcom Filters 2-6609028-2 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a two-stage configuration with quick-connect terminals, rated for 250VAC and 20A at 50/60Hz. The unit provides effective noise suppression for commercial applications.

Feature Summary

• Two-stage EMI/RFI filtering architecture
• Quick-connect terminal interface
• Chassis mount installation style

Applications

• Commercial equipment power lines
• Industrial machinery input stages
• General purpose AC power filtering

Procurement Notes

Verify the specific datasheet version for the 2-6609028-2 part number to confirm exact dimensional tolerances and terminal spacing before integration. Ensure the application environment remains within the specified operating temperature range and voltage ratings defined in the official manufacturer documentation.

Selection Notes

Select this component when a 20A single-phase filter with quick-connect terminals is required. Confirm that the chassis mounting footprint aligns with the enclosure design. Verify that the two-stage attenuation characteristics meet the specific electromagnetic interference requirements of the target system.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial use. The 2-6609028-2 variant specifically addresses high-current single-phase applications requiring robust chassis-mounted solutions.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
