2-6609028-4

Overview

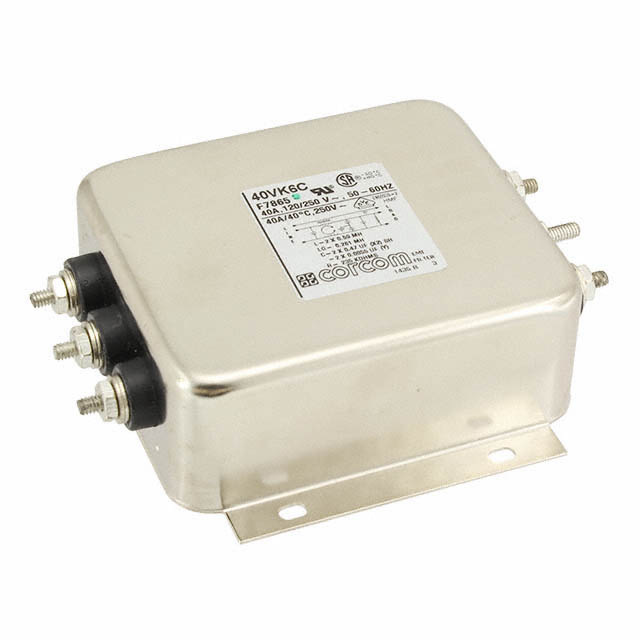

The TE Connectivity Corcom Filters 2-6609028-4 is a single-phase power line filter module designed for chassis mounting. It features stud terminals for secure electrical connections and supports a rated current of 40 A at 250 VAC. The unit incorporates an inductance of 590µH to provide effective EMI/RFI suppression. Certified by UL, this component operates within standard industrial frequency ranges and is intended for general-purpose applications requiring robust noise filtering.

Feature Summary

• Provides single-phase EMI/RFI suppression for power lines
• Features stud terminal configuration for secure chassis mounting
• Supports high current ratings suitable for demanding loads

Applications

• General purpose electronic equipment
• Industrial machinery power inputs
• Power supply units requiring noise reduction

Procurement Notes

Verify the specific datasheet version and certification marks (UL) prior to integration. Confirm that the chassis mounting hole pattern aligns with the mechanical drawings. Ensure the stud terminal torque specifications are strictly followed during installation to maintain electrical integrity and safety compliance. Cross-reference the part number with official TE Connectivity documentation to confirm current availability status.

Selection Notes

Select this component when a single-phase filter with a 40 A rating is required. The 590µH inductance value determines the attenuation characteristics; verify this meets system noise requirements. The stud terminal interface dictates the mounting hardware needed. Compare against other Corcom series modules if different current or voltage ratings are necessary for the specific application environment.

Part Context

This module belongs to the TE Connectivity Corcom Filters power line filter family. These components are engineered for commercial and industrial use to mitigate electromagnetic interference. The product line typically offers various current ratings and termination styles to accommodate diverse power distribution architectures and enclosure constraints.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
