2-6609037-2

Overview

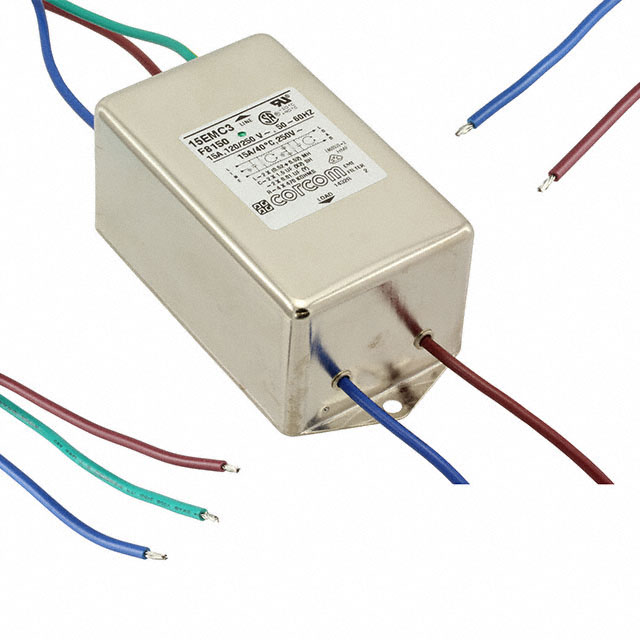

The TE Connectivity Corcom Filters 2-6609037-2 is a single-phase, two-stage RFI line filter designed for chassis mounting. It features a maximum current rating of 15 A and operates at 250 VAC. The component utilizes faston terminals for connection and is certified by CSA, UL, and VDE agencies.

Feature Summary

• Two-stage EMI/RFI filtering architecture
• Compact dual-stage design within the EMC series
• Chassis mount installation style

Applications

• Equipment requiring CISPR compliance
• General industrial electronics
• Power supply input stages

Procurement Notes

Verify the specific datasheet version to confirm exact attenuation curves and terminal dimensions. Ensure the chassis opening matches the physical footprint requirements for proper mechanical fitment during integration.

Selection Notes

Select this model when a compact, cost-effective solution with a 15 A rating is required. The two-stage design provides superior noise reduction compared to single-stage alternatives while maintaining a small form factor suitable for space-constrained enclosures.

Part Context

This component belongs to the Corcom EMC Series, which is characterized as the most compact dual-stage filter available from the manufacturer. It offers high current handling capabilities relative to its size, distinguishing it from standard single-stage filters in the broader Corcom lineup.

Replacement Considerations

FN2080A-15-06 by TE Connectivity Schaffner is listed as a similar substitute part number.
