2-6609037-4

Overview

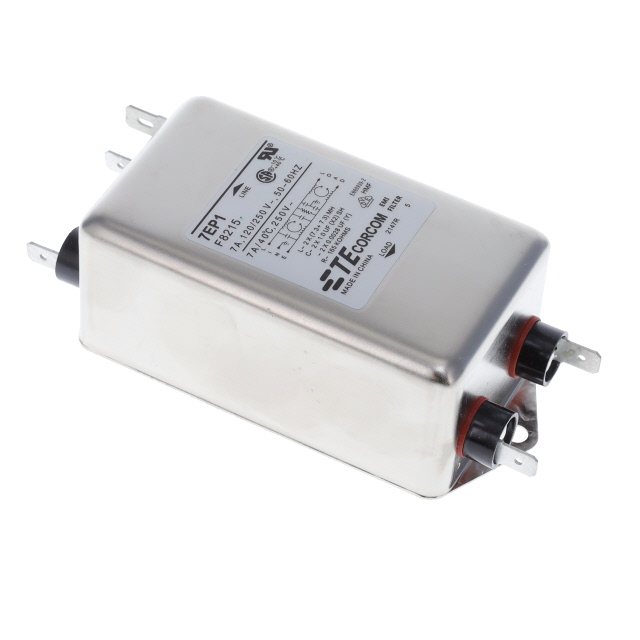

The TE Connectivity Corcom Filters 2-6609037-4 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates at a rated voltage of 250VAC and supports a current capacity of 7A within the 50/60Hz frequency range. The component features a two-stage filtering configuration with quick connect termination style, ensuring effective noise suppression for power line applications.

Feature Summary

• Two-stage EMI/RFI filtering architecture
• Chassis mount installation design
• Quick connect termination interface

Applications

• General purpose electronic equipment
• Power supply input stages
• Industrial control systems

Procurement Notes

Verify the manufacturer part number against official TE Connectivity documentation to confirm specifications. Ensure compatibility with chassis mounting requirements and quick connect terminal types. Check for RoHS compliance status and relevant safety certifications such as CSA or VDE before integration into final designs.

Selection Notes

Select this component when a single-phase, two-stage filter is required for 7A circuits operating at 250VAC. Consider the chassis mount form factor and quick connect terminals for assembly constraints. Evaluate thermal performance and physical dimensions against available panel space in the target enclosure design.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in electromagnetic interference suppression solutions. The product line provides various configurations for AC power line protection, catering to commercial and industrial electronics requiring reliable noise reduction and regulatory compliance.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify direct replacements through official TE Connectivity channels or authorized distributors to ensure electrical and mechanical compatibility.
