Product Detailed Parameters
- Description：LINE FILTER 250VAC 7A CHASS MNT
- Series：EP
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：7:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：14.6mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

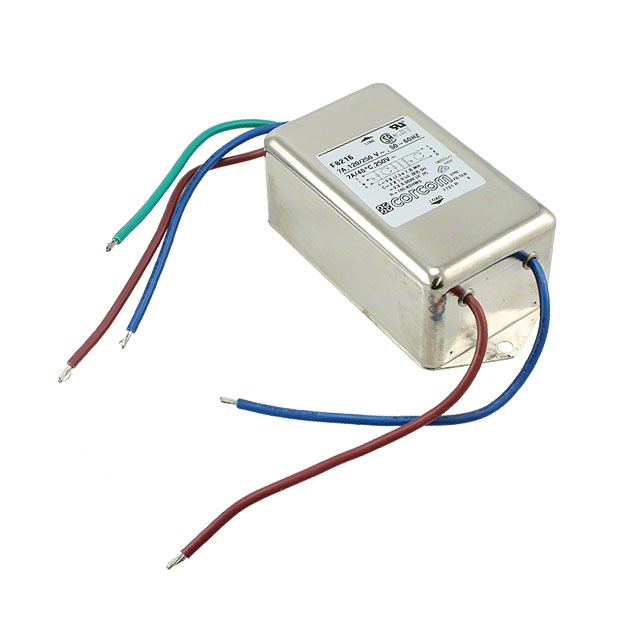

The TE Connectivity Corcom Filters 2-6609037-5 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a two-stage configuration to provide effective noise suppression in power lines. The component supports a maximum current rating of 7 A at an AC voltage of 250V and operates within the standard 50/60Hz frequency range. Termination is achieved via wire leads, facilitating integration into various electronic assemblies requiring compact filtering solutions.
Feature Summary
- Two-stage EMI/RFI filtering architecture
- Compact chassis mount design
- Wire lead termination style
Applications
- General purpose electronic equipment
- Power supply input stages
- Industrial control systems
Procurement Notes
Verify the specific manufacturer part number against official TE Connectivity documentation to ensure compatibility with system requirements. Confirm that the wire lead termination style matches the intended circuit board or harness connections. Check for any recent product change notices regarding manufacturing locations or material composition updates before finalizing procurement plans.
Selection Notes
Select this component when a compact, two-stage filter is required for single-phase applications operating up to 7 A. Ensure the chassis mounting method aligns with the enclosure design. Verify that the wire lead termination is suitable for the available space and connection methodology within the assembly.
Part Context
This component belongs to the TE Connectivity Corcom Filters series, known for providing cost-effective electromagnetic interference solutions. The 2-6609037-5 variant specifically addresses needs for moderate current ratings in space-constrained environments, offering reliable performance for general industrial and commercial applications.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified alternatives. Cross-reference technical specifications such as current rating, voltage, and stage configuration to ensure functional equivalence if sourcing from other manufacturers.
