2-6609037-6

Overview

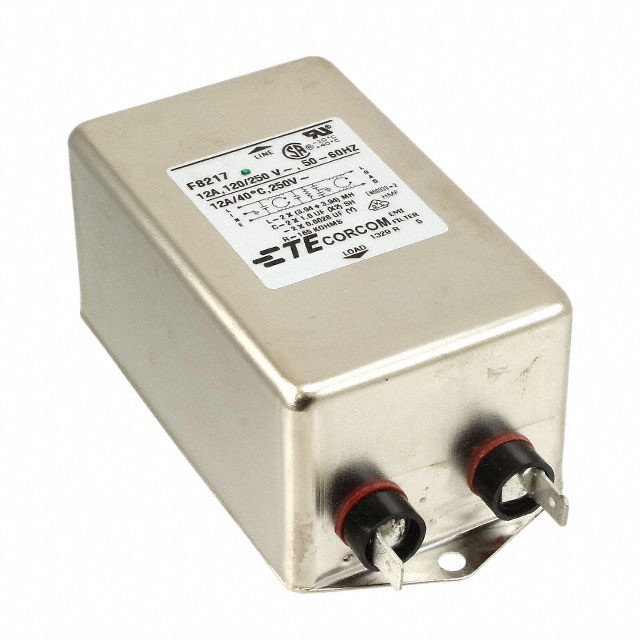

The TE Connectivity Corcom Filters part number 2-6609037-6 is a single-phase EMC/EMI line filter designed for commercial applications. It features a two-stage configuration with quick connect terminals and operates at frequencies of 50/60Hz. The component has a rated current of 12 A and a voltage rating of 250V AC. It utilizes chassis or panel mounting methods.

Feature Summary

• Two-stage EMI/RFI filtering architecture
• Quick connect terminal interface
• Single-phase power line protection

Applications

• Commercial electronic equipment noise suppression
• Industrial control system power conditioning
• General purpose EMC compliance filtering

Procurement Notes

Verify the specific datasheet version as manufacturer documentation may undergo cosmetic changes or specification updates. Confirm that the 12A rating aligns with your circuit requirements. Ensure mounting hardware compatibility with the intended chassis or panel thickness. Check for RoHS3 compliance status in the latest official release notes before finalizing procurement orders.

Selection Notes

Select this component when a two-stage attenuation profile is required for single-phase AC lines. The 12A current capacity suits moderate power loads. Verify that the quick connect terminal style matches existing wiring harnesses. Consider the physical dimensions and mounting constraints relative to the enclosure design. Compare leakage current specifications against sensitive medical or audio equipment standards if applicable.

Part Context

This module belongs to the TE Connectivity Corcom Filters series, which specializes in electromagnetic interference suppression. The product falls under the category of power line filter modules used to mitigate conducted noise on AC power inputs. It serves as a critical component for meeting regulatory emission standards in commercial and industrial devices.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult the official TE Connectivity selector chart for equivalent performance characteristics.
