2-6609037-7

Overview

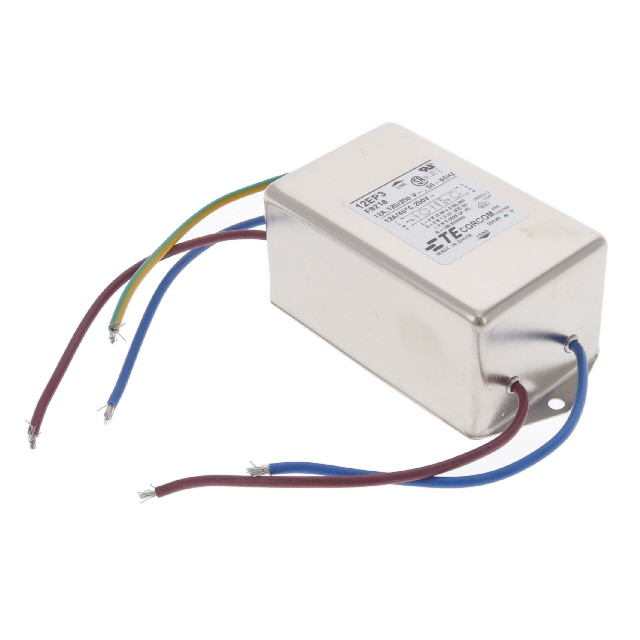

The TE Connectivity Corcom Filters part number 2-6609037-7 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 12 A and operates at 250 VAC within the 50/60 Hz frequency range. The component features a two-stage configuration with wire lead termination. It is certified by CSA, UL, and VDE agencies.

Feature Summary

• Two-stage EMI/RFI filtering architecture
• Chassis mount installation style
• Wire lead termination method

Applications

• General purpose electronic equipment noise suppression
• Industrial control systems power conditioning
• Medical device power input filtering

Procurement Notes

Verify the specific datasheet version for the 2-6609037-7 to confirm exact inductance values and leakage current specifications, as these parameters are critical for compliance with local electromagnetic interference regulations. Ensure the wire leads meet the required gauge and insulation standards for the target application environment before finalizing procurement.

Selection Notes

Select this component when a 12 A capacity is required for single-phase AC lines. The two-stage design offers higher attenuation compared to single-stage alternatives. Confirm that the chassis mounting dimensions and wire lead lengths align with the internal layout constraints of the enclosure being designed.

Part Context

This filter belongs to the TE Connectivity Corcom Filters lineup, which specializes in power line filters for commercial and industrial applications. The EP/VP series documentation provides additional context on the manufacturing standards and performance characteristics typical of this product family.

Replacement Considerations

Publicly confirmed substitute part numbers for 2-6609037-7 were not identified in the provided source material. Verify compatibility with alternative models through direct electrical parameter comparison.
