2-6609075-1

Overview

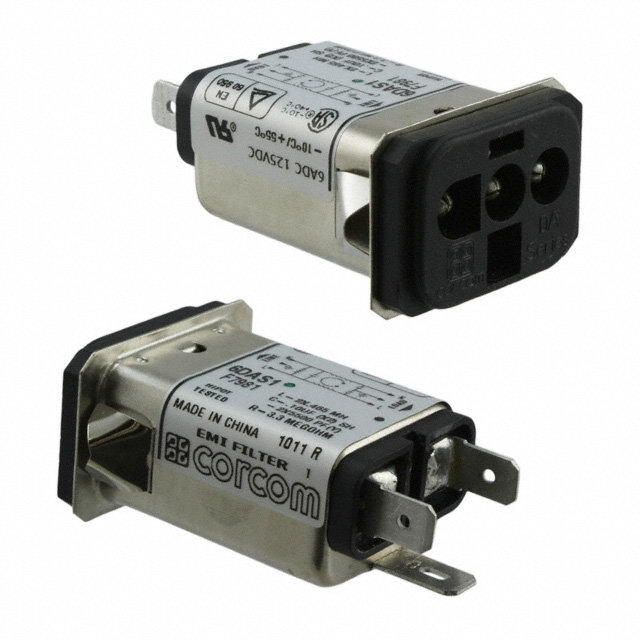

The TE Connectivity Corcom Filters 2-6609075-1 is a single-phase EMC/EMI line filter designed for panel mounting. It features quick connect terminals and supports a rated current of 6 A at 125 VDC or 125 VAC. The unit utilizes a single-stage configuration to suppress electromagnetic interference in power lines.

Feature Summary

• Single-stage EMI/RFI filtering capability
• Quick connect terminal interface
• Panel mount installation style

Applications

• Power supply input stages
• Electronic equipment chassis
• Industrial control panels

Procurement Notes

Verify the specific voltage rating (125V DC vs AC) against application requirements, as datasheets may list both. Confirm terminal type compatibility with mating connectors. Check current derating curves if operating near the 6A limit. Ensure panel thickness accommodates the mounting mechanism.

Selection Notes

Select this component when single-stage attenuation is sufficient for the noise environment. Compare insertion loss characteristics against stricter two-stage alternatives if higher suppression is needed. Verify that the quick connect tab dimensions match the PCB or wire harness design constraints.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which provides various power line filter solutions. The 2-6609075-1 represents a specific configuration within the lineup, distinguished by its single-stage design and 6A current rating for compact applications.

Replacement Considerations

Direct substitutes are not explicitly listed in public documentation. Evaluate other Corcom single-stage filters with matching 6A ratings and quick connect terminals. Verify mechanical footprint and electrical specifications before substitution.
