2-6609089-4

Overview

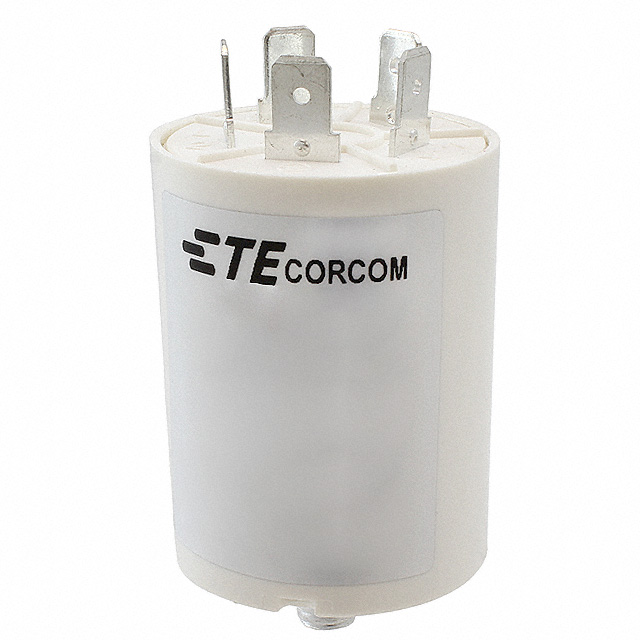

The TE Connectivity Corcom Filters 2-6609089-4 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 16 A and operates at voltages up to 250V AC within a 50/60Hz frequency range. The component utilizes a single-stage configuration with quick connect terminals featuring threaded M8 posts. This industrial-grade filter provides essential noise suppression for power lines in demanding electronic applications.

Feature Summary

• Single-stage EMI/RFI noise suppression architecture
• Chassis mount design with threaded M8 post connections
• Rated for 16A continuous current at 250VAC

Applications

• Industrial machinery power input filtering
• Medical equipment noise reduction
• General purpose electronic power supply protection

Procurement Notes

Verify the specific terminal style, as sources indicate both quick connect and threaded M8 post options for this part number. Confirm RoHS3 compliance status and check for recent PCN updates regarding supplier changes or end-of-life notices before finalizing procurement plans.

Selection Notes

Select this component when a single-stage filter is sufficient for the application's noise profile. Ensure the chassis mounting method aligns with the available threaded post interface. Verify that the 16A current rating meets the system's peak load requirements without derating issues.

Part Context

This module belongs to the TE Connectivity Corcom Filters series, specializing in power line interference mitigation. It serves as a critical interface component between the AC power source and sensitive downstream electronics, ensuring regulatory compliance through effective electromagnetic interference reduction.

Replacement Considerations

FN2080A-10-06 by TE Connectivity Schaffner is listed as a similar alternative. Evaluate compatibility regarding current ratings, voltage limits, and physical mounting dimensions before substitution.
