Product Detailed Parameters
- Description：LINE FILTER 125/280VAC 3.9A CHAS
- Series：FL
- Mfr：TE Connectivity Corcom Filters
- Package：Box,Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 280V
- Current：3.9 A
- Frequency - Operating：50/60Hz
- Applications：Lighting
- Approval Agency：UL
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：180µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

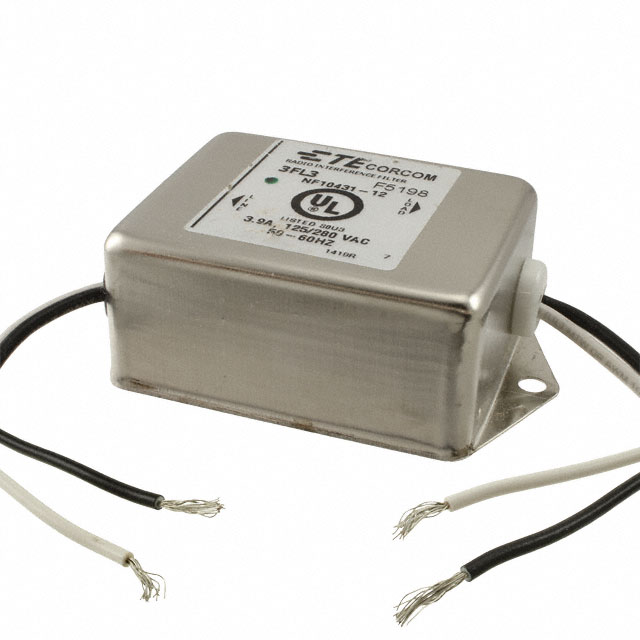

The TE Connectivity Corcom Filters model 2-6609092-3 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates at a rated voltage of 125VAC and 280VAC with a current rating of 3.9A at 50/60Hz. The unit features a single-stage configuration and utilizes wire lead termination for circuit connection.
Feature Summary
- Provides electromagnetic interference suppression through single-stage filtering
- Designed for direct chassis mounting applications
- Utilizes wire leads for electrical interconnection
Applications
- General electronic equipment requiring EMI suppression
- Power supply input stages
- Industrial control systems
Procurement Notes
Verify the exact current and voltage ratings against the specific application requirements before procurement. Confirm that the wire lead termination style matches the existing wiring harness or terminal block design. Ensure the chassis mounting method accommodates the physical dimensions of the filter unit.
Selection Notes
Select this component when a single-stage EMI filter is sufficient for the noise reduction needs. Consider the 3.9A current rating to ensure it meets the load requirements. Verify compatibility with the 125VAC/280VAC operating voltages. Check if wire lead termination is preferred over quick-connect terminals for the assembly process.
Part Context
This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial use. The product falls under the category of EMC/EMI line filters, providing essential noise suppression for sensitive electronic circuits connected to AC power lines.
