2-6609974-0

Overview

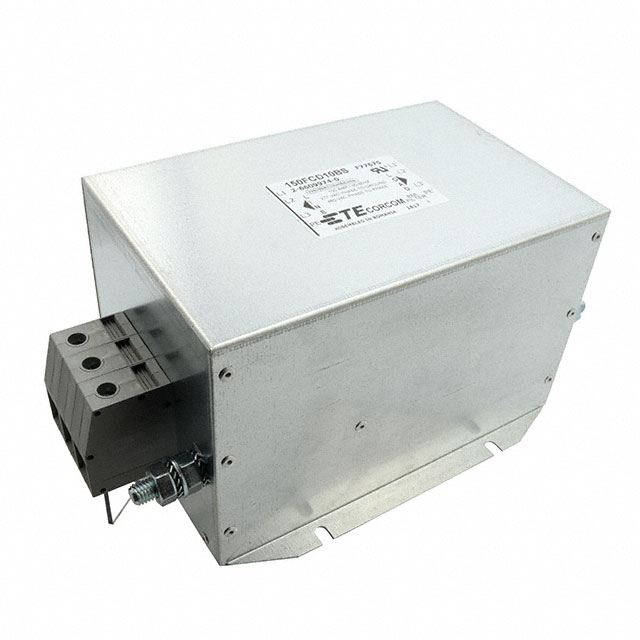

The TE Connectivity Corcom Filters model 2-6609974-0 is a high-performance, three-phase EMI/RFI power line filter designed for chassis mounting. It supports a rated current of 150A and operates at voltages up to 250VAC across 50Hz and 60Hz frequencies. This component provides robust electromagnetic interference suppression for demanding industrial applications requiring significant power handling capabilities.

Feature Summary

• Provides effective attenuation of electromagnetic interference in three-phase power systems
• Engineered for high-current applications with a 150A rating
• Features durable chassis mount construction for secure installation

Applications

• Industrial motor drives and variable frequency drives
• High-power medical imaging equipment
• Large-scale manufacturing automation systems

Procurement Notes

Verify the specific voltage and current requirements against the official datasheet before procurement. Confirm that the chassis mounting dimensions align with the enclosure design. Ensure compliance with relevant regional safety certifications required for the final assembly environment.

Selection Notes

Select this component when three-phase filtering is necessary for currents exceeding standard single-phase limits. Consider the physical size constraints associated with chassis-mounted modules. Evaluate thermal management requirements given the high current capacity of the unit.

Part Context

This part belongs to the Corcom Delta series, which specializes in high-performance power line filters. The series is recognized for its ability to handle substantial electrical loads while maintaining strict emission standards in critical infrastructure and heavy industrial environments.

Replacement Considerations

FN2080A-150-99 by TE Connectivity Schaffner is documented as a similar replacement option.
