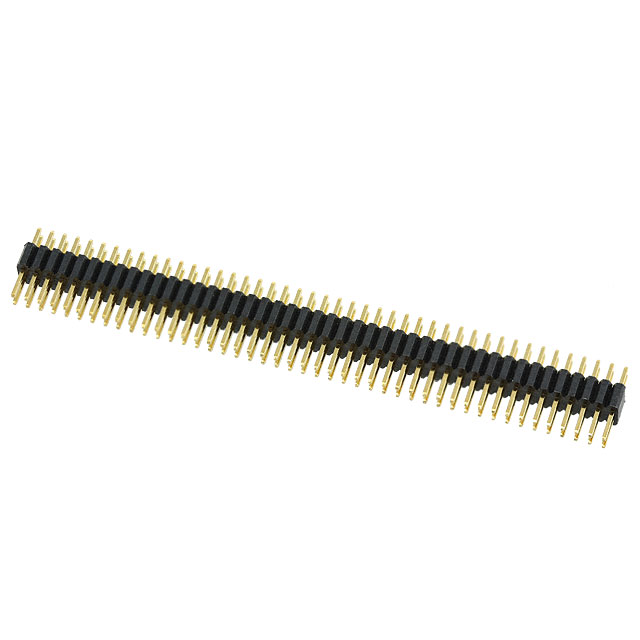

20021111-00090T4LF

20021111-00090T4LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER VERT 90POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 20021111-00090T4LF

• Description：CONN HEADER VERT 90POS 1.27MM
• Series：Minitek127® 1.27mm
• Mfr：Amphenol ICC (FCI)
• Package：Tube
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.050" (1.27mm)
• Number of Positions：90
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.120" (3.05mm)
• Contact Length - Post：0.091" (2.30mm)
• Overall Contact Length：0.309" (7.86mm)
• Insulation Height：0.098" (2.50mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Thermoplastic
• Features：-
• Operating Temperature：-55°C ~ 125°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：1A per Contact
• Voltage Rating：125VAC

Headers, Male Pins datasheet and documents for 20021111-00090T4LF
