2007088-1

Edgeboard Connectors Overview

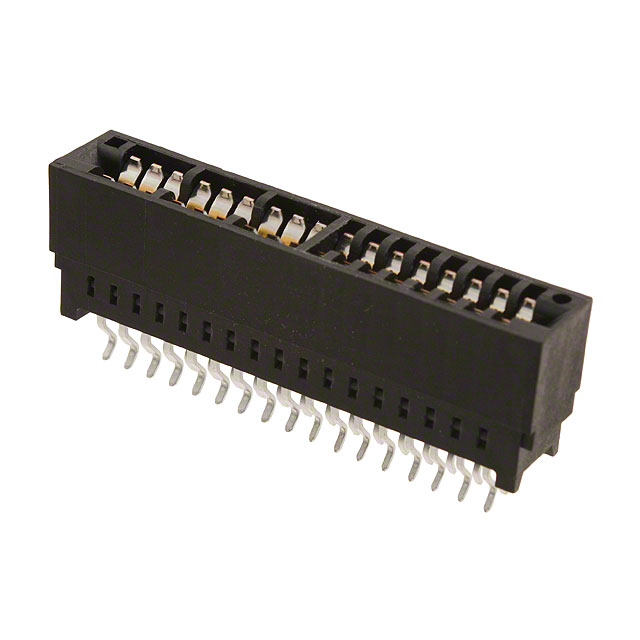

The TE Connectivity AMP Connectors part number 2007088-1 is a dual-edge card edge connector assembly designed for board-to-board power and signal interconnections. It features a 22-position configuration with a 0.100-inch (2.54 mm) centerline. The connector includes 6 dedicated power positions and 16 signal positions, utilizing female contacts with gold plating. The housing is black, and the component belongs to the SEC II Power series.

Edgeboard Connectors Feature Summary

• Dual-edge design facilitates secure board-to-board connections
• Integrated power and signal contact arrangement within a single housing
• Gold-plated female contacts ensure reliable conductivity
• Black insulating housing provides structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring mixed signal and power interfaces
• Commercial electronic equipment needing compact board stacking
• Power supply modules with integrated signal monitoring

Edgeboard Connectors Procurement Notes

Verify the specific suffix and revision level against the manufacturer's latest datasheet before ordering. Confirm that the required mating card edge thickness aligns with the connector's specification. Ensure compatibility with standard 2.54 mm pitch tooling. Check for any recent packing specification changes or reliability document updates. Validate RoHS compliance status for the intended market regulations.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge interface is required for both power distribution and signal transmission in a compact form factor. The 2.54 mm pitch suits general industrial and commercial applications. Consider the 6 power positions for adequate current handling alongside the 16 signal lines. Evaluate mechanical retention needs as this is a non-specified connector type without additional locking mechanisms.

Edgeboard Connectors Part Context

This connector is part of the SEC II Power series by TE Connectivity AMP Connectors. The series focuses on robust board-to-board solutions combining power and signal capabilities. The dual-edge architecture allows for stable vertical mounting between PCBs. This specific model integrates distinct power and signal zones within one assembly.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-compatibility with existing mating cards carefully if considering alternative suppliers. No direct equivalent part numbers are listed in the source material.
