200TDSS84

Overview

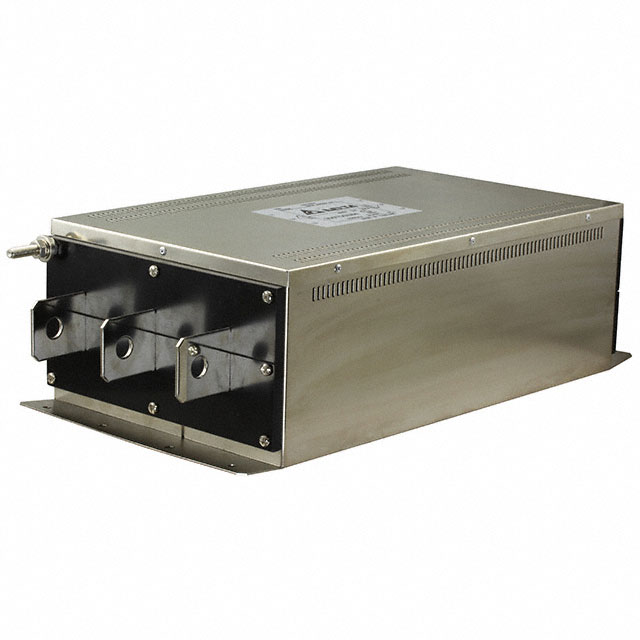

The Delta Electronics 200TDSS84 is a three-phase delta configuration power line filter module designed for industrial applications. It supports a continuous current rating of 200A and operates at a voltage of 480VAC. The unit utilizes a chassis mount style with screw terminals for secure installation. This component functions as an EMC/EMI filter to mitigate electromagnetic interference in power systems.

Feature Summary

• Designed specifically for three-phase delta electrical configurations
• Provides electromagnetic compatibility filtering for power lines
• Utilizes robust chassis mounting for stable industrial integration

Applications

• Industrial power distribution systems requiring EMI suppression
• Three-phase delta network infrastructure protection
• Electromagnetic interference mitigation in heavy machinery power supplies

Procurement Notes

Verify the specific datasheet version matches the required technical specifications before procurement. Confirm that the three-phase delta topology aligns with the existing power supply architecture. Ensure the 200A current rating and 480VAC voltage limits are compatible with the operational environment to prevent component failure or safety hazards during installation.

Selection Notes

Select this model only when the application requires a three-phase delta configuration rather than wye. Ensure the system can accommodate the physical dimensions of the chassis mount design. Verify that the 200A capacity meets the peak load requirements without exceeding thermal limits. Confirm compatibility with the specific frequency range supported by the internal filter components.

Part Context

This component belongs to the Delta Electronics power line filter module series. These modules are engineered for high-current industrial environments where electromagnetic interference must be controlled. The product line focuses on providing reliable noise reduction for sensitive electronic equipment connected to three-phase power networks.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Ensure any replacement maintains identical three-phase delta configuration, 200A current rating, and 480VAC voltage compatibility to preserve system integrity.
