Product Detailed Parameters
- Description：PIN HEADER, SINGLE ROW STRAIGHT
- Series：2011
- Mfr：Oupiin
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：5
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.240" (6.10mm)
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：0.457" (11.61mm)
- Insulation Height：0.098" (2.50mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：Gold
- Contact Material：Brass
- Insulation Material：Polybutylene Terephthalate (PBT)
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：-
Download product information
Overview

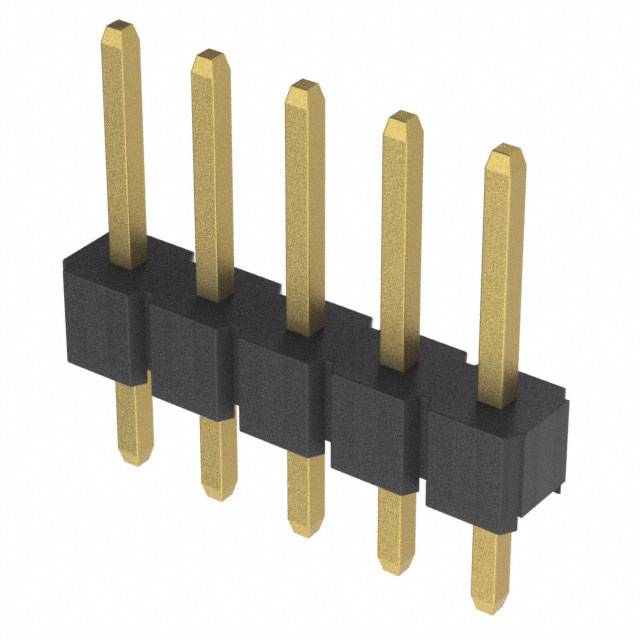

The Oupiin 2011-1X05G00SB is a single-row male pin header connector designed for through-hole board mounting. It features five contacts with a 0.100-inch (2.54mm) pitch and square pin shape. The unit utilizes brass contact material housed in a black insulator, providing a straight orientation for reliable PCB integration.
Feature Summary
- Single row male pin configuration
- Through-hole solder terminal attachment
- Straight mounting orientation
Applications
- General purpose PCB interconnects
- Signal routing on electronic boards
- Prototype development circuits
Procurement Notes
Verify the specific part number against manufacturer documentation to confirm contact count and pitch specifications. Ensure compatibility with mating female connectors regarding mechanical dimensions and electrical ratings before finalizing procurement decisions.
Selection Notes
Select this component for applications requiring a standard 2.54mm pitch male header. Confirm that the single-row layout and through-hole termination method align with the target printed circuit board design constraints and assembly processes.
Part Context
This model belongs to the Oupiin 2011 series of board connectors. The series typically offers various contact counts while maintaining consistent pitch and mounting characteristics for standardized electronic assembly requirements.
Replacement Considerations
Compatible substitutes include other single-row male headers with 0.100 inch pitch and five positions. Verify mechanical footprint and insulation height match when considering alternative manufacturers.
FAQ
What is the contact shape of this connector?
The connector features square pin contacts.
Is this connector suitable for surface mount applications?
No, it is designed for through-hole solder terminal attachment.
