Product Detailed Parameters
- Description：PIN HEADER, DUAL ROW, 3 PIN PER
- Series：2011
- Mfr：Oupiin
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.240" (6.10mm)
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：0.457" (11.61mm)
- Insulation Height：0.098" (2.50mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic, Polyester, Glass Filled
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2A
- Voltage Rating：-
Download product information
Overview

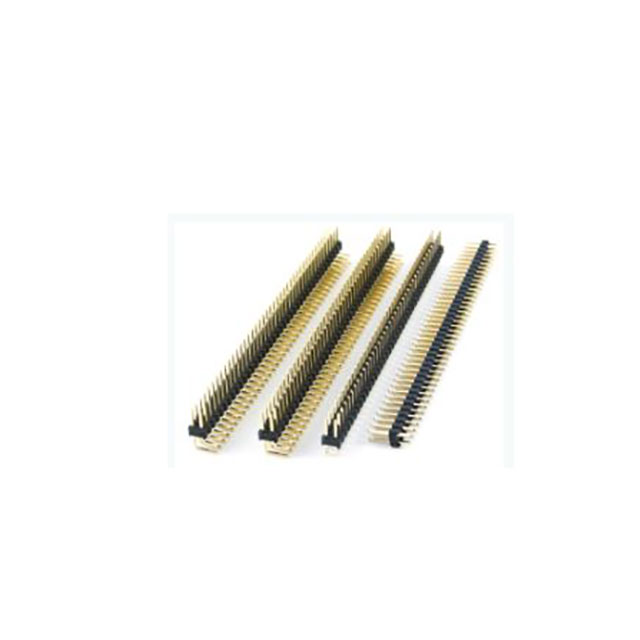

The Oupiin 2011-2X06G00SB-HT is a dual-row male pin header designed for board-to-board interconnections. It features a 0.100-inch (2.54mm) contact pitch and provides 12 positions with three pins per row. The connector utilizes through-hole solder terminals for secure PCB mounting. Key physical attributes include a 3mm end connection pin length and square pin styling. The unit employs a locking mechanism to ensure stable mating engagement.
Feature Summary
- Dual-row male pin configuration for high-density signal routing
- Through-hole solder terminal construction for robust mechanical attachment
- Integrated locking feature to maintain secure mating stability
Applications
- General electronic circuit board interconnects
- Industrial control system wiring harnesses
- Consumer electronics assembly modules
Procurement Notes
Verify the specific suffix HT against official Oupiin documentation to confirm heat resistance or plating specifications. Ensure the required pin count matches the 12-position layout. Cross-reference the 0.100-inch pitch requirement with target PCB footprints. Confirm that the male pin gender aligns with the mating female socket requirements for the intended application design.
Selection Notes
Select this component when a dual-row male header with a standard 2.54mm pitch is required. The through-hole mounting style suits applications needing high mechanical strength. Verify that the square pin geometry accommodates the mating connector's socket design. Consider the locking feature if vibration resistance is necessary for the operational environment.
Part Context
This part belongs to the Oupiin rectangular connector family, specifically within the headers and wire housings category. It represents a standard pitch solution for general-purpose interconnect needs. The product line focuses on reliable board-to-board connections using durable solder terminal technology.
Replacement Considerations
Direct substitutes require matching the 12-position count, dual-row male gender, and 2.54mm pitch. Verify that alternative components support through-hole mounting and offer comparable locking mechanisms. Ensure the replacement maintains the same square pin profile for proper mating compatibility.
