Product Detailed Parameters
- Description：PIN HEADER, SINGLE ROW, 40 PIN,
- Series：2011
- Mfr：Oupiin
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：40
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board
- Shrouding：Unshrouded
- Mounting Type：-
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：-
- Features：-
- Operating Temperature：-
- Ingress Protection：-
- Material Flammability Rating：-
- Insulation Color：-
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

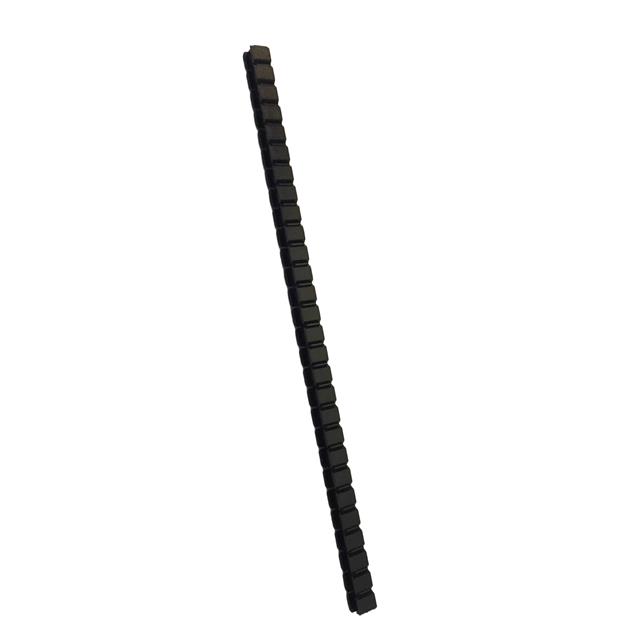

The Oupiin 2011H-1X40HB is a single-row male pin header connector featuring 40 positions. It utilizes a standard 2.54mm (0.100 inch) pitch for reliable interconnection. The component is designed with a straight orientation and includes a housing-only configuration, indicated by the 'HB' suffix. This part supports surface mount or through-hole assembly depending on specific tail variations, providing a robust solution for general electronic circuit connections.
Feature Summary
- Single row male pin configuration
- Standard 2.54mm pitch spacing
- Straight header orientation
- RoHS compliant housing construction
Applications
- General purpose PCB interconnects
- Industrial control systems
- Consumer electronics assemblies
Procurement Notes
Verify the exact termination style and contact plating specifications against the manufacturer datasheet before procurement. Confirm RoHS compliance status for the specific batch, as some variants in this series may differ. Ensure the housing-only designation matches the assembly requirements to avoid integration errors during production.
Selection Notes
Select this component when a 40-position single-row connection is required. The 2.54mm pitch ensures compatibility with standard breadboards and mating connectors. Consider the operating temperature range of -40°C to 105°C for environmental suitability. Verify mechanical retention needs against the straight header design.
Part Context
This part belongs to the Oupiin 2011 series of headers. The series offers various position counts and row configurations. The 2011H-1X40HB specifically addresses high-density single-row needs. It complements other variants like the 2011-1X40G00SB which may offer different housing colors or locking features.
Replacement Considerations
Direct substitutes include the Oupiin 2011-1X40GS, though RoHS compliance differs. Generic equivalents with 2.54mm pitch and 40 positions are available from other manufacturers. Ensure mechanical dimensions and current ratings match the original design constraints.
