Product Detailed Parameters
- Description：PIN HEADER, DOUBLE ROW, 26 PIN,
- Series：2015
- Mfr：Oupiin
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：26
- Number of Rows：2
- Row Spacing - Mating：0.059" (1.50mm)
- Number of Positions Loaded：All
- Style：Board to Board
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.244" (6.20mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.098" (2.50mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：Gold
- Contact Material：Brass
- Insulation Material：Polyamide (PA6T), Nylon 6T
- Features：Pick and Place
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：-
Download product information
Overview

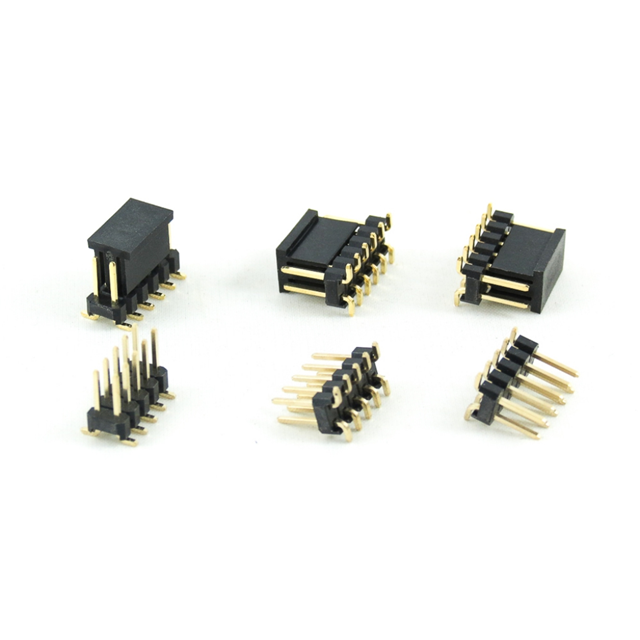

The Oupiin 2015-2X13G00DT-P is a surface mount pin header featuring 26 contacts arranged in a double-row configuration. It utilizes a 2.54mm (0.100 inch) pitch and employs male pins for interconnection. The component is designed for direct PCB mounting, offering a compact profile suitable for high-density electronic assemblies.
Feature Summary
- Surface mount construction enables automated pick-and-place assembly processes.
Applications
- General electronic circuit board interconnections
Procurement Notes
Verify the specific datasheet version to confirm insulation material properties and operating temperature ranges. Ensure the selected variant matches the required contact count and row configuration for the target application design.
Selection Notes
Select this component for applications requiring a 26-position male header with a 2.54mm pitch. Confirm that the surface mount footprint aligns with the PCB layout and that the thermal characteristics meet the operational environment requirements.
Part Context
This part belongs to the Oupiin 2015 series of headers. This series typically includes various configurations with different pin counts and mounting styles, providing standardized solutions for board-to-board or board-to-wire connections within the manufacturer's connector portfolio.
Replacement Considerations
Cross-reference with other 26-pin, 2.54mm pitch surface mount headers from alternative manufacturers. Verify mechanical dimensions and electrical ratings before substitution.
