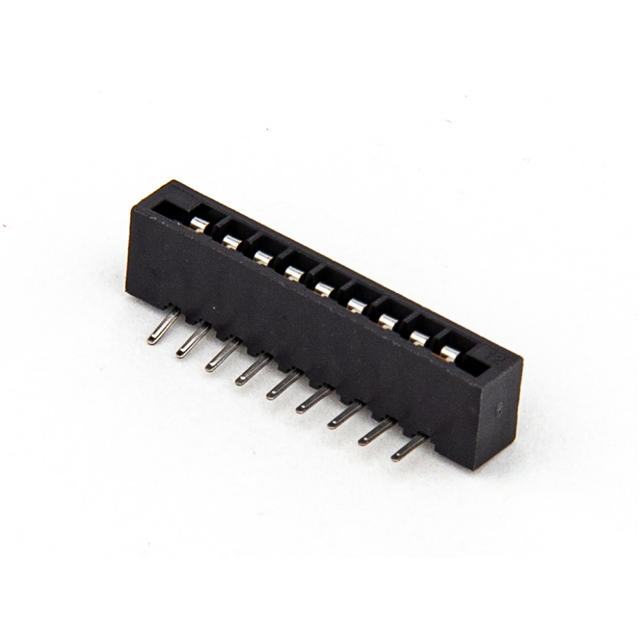

2032-11TRU
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：CONN FFC FPC 11POS 2.54MM R/A
- Series：2032-A
- Mfr：Oupiin
- Package：Tube
- Flat Flex Type：FFC, FPC
- Mounting Type：Through Hole, Right Angle
- Connector/Contact Type：-
- Number of Positions：11
- Pitch：0.100" (2.54mm)
- Termination：Solder
- FFC, FCB Thickness：0.30mm
- Height Above Board：0.179" (4.55mm)
- Locking Feature：-
- Cable End Type：Straight
- Contact Material：Phosphor Bronze
- Contact Finish：Tin
- Housing Material：Polybutylene Terephthalate (PBT)
- Actuator Material：-
- Features：-
- Voltage Rating：250V
- Operating Temperature：-25°C ~ 85°C
- Material Flammability Rating：UL94 V-0
