2034471

Overview

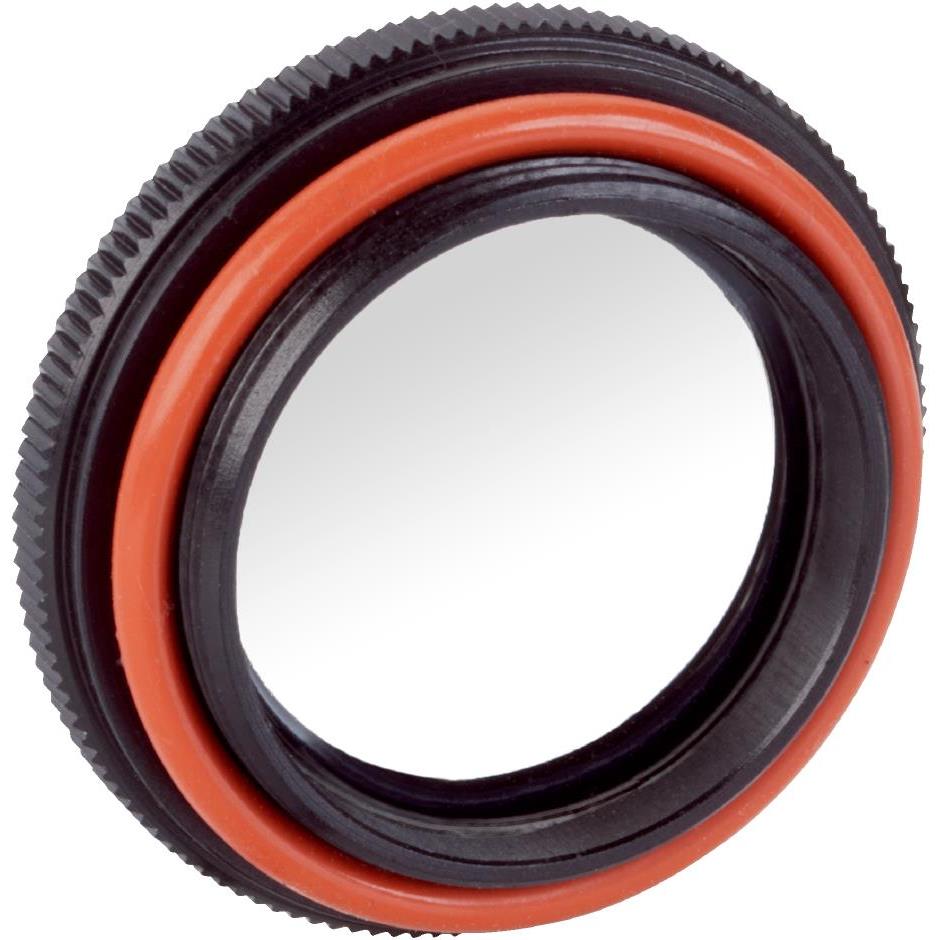

The SICK part number 2034471 is a lens component belonging to the TW60 series, designed for use with CS81-P3612 RGB LED sensors. It functions as an optical element to shape and direct light from the source. The sensor system utilizes red (640nm), green (525nm), and blue (470nm) wavelengths. Key operational parameters include a spot size of 13mm x 13mm and an induction distance of up to 60mm with a tolerance of ±9mm. The unit features a medium housing shape with dimensions of 30.4mm x 80mm x 53mm.

Feature Summary

• Optical lens component for TW60 series applications
• Compatible with RGB LED light sources
• Designed for precise light shaping and direction

Applications

• Integration into CS81-P3612 color matching systems
• Industrial object detection using RGB sensing
• Automated quality assurance setups requiring specific light spot geometry

Procurement Notes

Verify that the required accessory matches the TW60 designation and is compatible with the CS81-P3612 sensor housing. Confirm the optical specifications align with the intended application's spot size and induction distance requirements before finalizing the order.

Selection Notes

Select this lens specifically for use with the CS81-P3612 model to ensure proper optical alignment. Ensure the installation environment supports the sensor's operating temperature range and mechanical mounting constraints defined by the medium housing dimensions.

Part Context

This item is classified under reflectors and optical elements within the SICK product portfolio. It serves as a critical accessory for enhancing the performance of multi-color photoelectric sensors by optimizing the light path and spot characteristics for specific detection tasks.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
