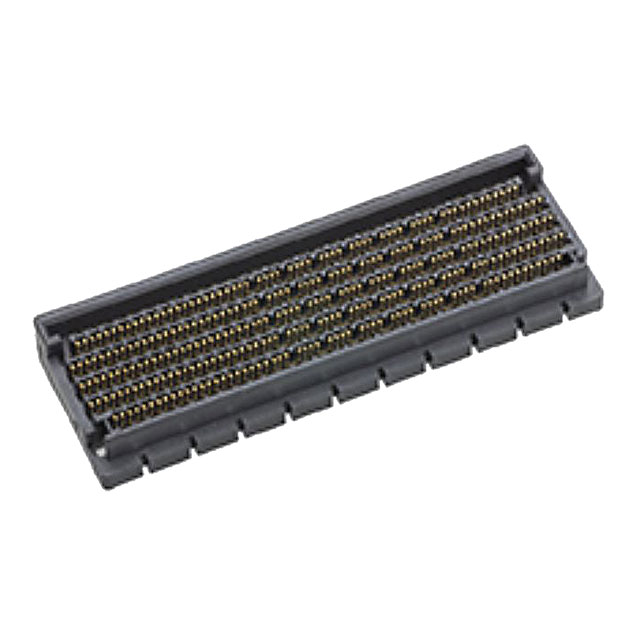

Arrays, Edge Type, Mezzanine (Board To Board) 2034560003 product image

2034560003

$93.98

Description：CONN SELF-MATE 699POS SMD GOLD
Series：Mirror Mezz 203456
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4700fc5b224e Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2034560003 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Molex. Its product description is CONN SELF-MATE 699POS SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 2034560003

Description：CONN SELF-MATE 699POS SMD GOLD
Series：Mirror Mezz 203456
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Self Mating, Non-Gendered, Hermaphroditic
Number of Positions：699
Pitch：-
Number of Rows：11
Mounting Type：Surface Mount
Features：Pick and Place
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Mated Stacking Heights：8mm, 11mm
Height Above Board：0.301" (7.65mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 2034560003

2034560003
