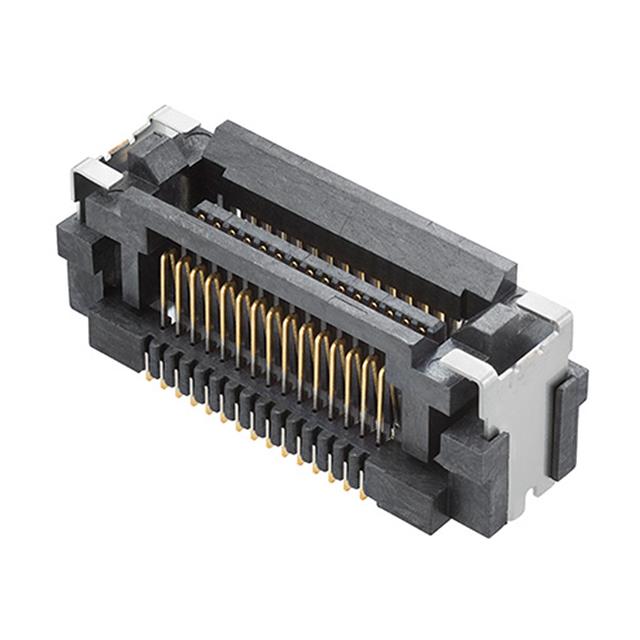

Arrays, Edge Type, Mezzanine (Board To Board) 2039560301 product image

2039560301

$1.41

Description：SLIMSTACK BOARD-TO-BOARD CONNECT
Series：SlimStack FSB5 203956
Mfr：Molex
Package：Box

SKU:54f642b4bf9c Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2039560301 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Molex. Its product description is SLIMSTACK BOARD-TO-BOARD CONNECT. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 2039560301

Description：SLIMSTACK BOARD-TO-BOARD CONNECT
Series：SlimStack FSB5 203956
Mfr：Molex
Package：Box
Connector Type：Plug, Outer Shroud Contacts
Number of Positions：30
Pitch：0.016" (0.40mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Solder Retention
Contact Finish：Gold
Contact Finish Thickness：-
Mated Stacking Heights：5mm
Height Above Board：0.171" (4.35mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 2039560301

2039560301
