- Description：PCB SOCKET, DOUBLE ROW, 8 PIN, S
- Series：2041
- Mfr：Oupiin
- Package：Bulk
- Connector Type：Socket
- Contact Type：Female Socket
- Style：Board to Board
- Number of Positions：8
- Number of Positions Loaded：All
- Pitch - Mating：0.100" (2.54mm)
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Insulation Color：-
- Insulation Height：0.197" (5.00mm)
- Contact Length - Post：0.126" (3.20mm)
- Operating Temperature：-55°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：2A
- Voltage Rating：-
Download product information
Overview

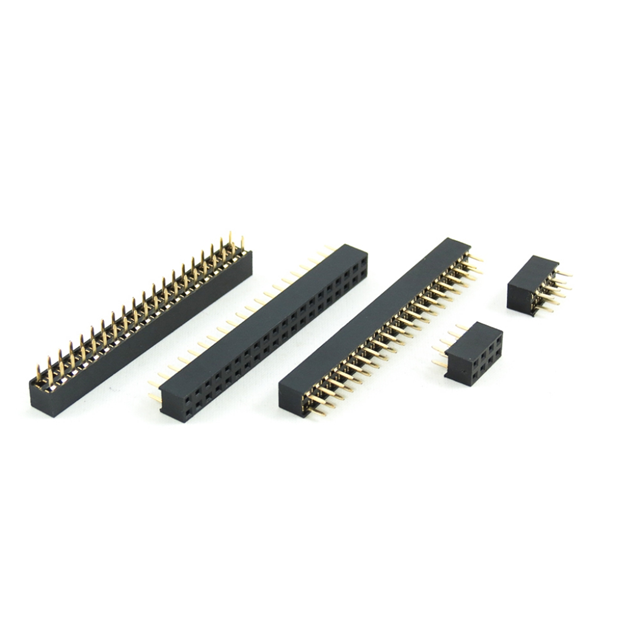

The Oupiin 2041-2X04G00SB is an 8-position socket connector featuring a 0.100 inch (2.54mm) pitch and two rows of contacts. Designed for through-hole mounting, it utilizes gold-plated terminals to ensure reliable signal transmission. The component supports a current rating of 2A and meets UL94 V-0 material flammability standards. It is classified as a female board connector with straight termination options.
Feature Summary
- Dual-row configuration providing eight contact positions
- Gold-plated terminals for enhanced conductivity
- Through-hole soldering method for secure PCB attachment
Applications
- General-purpose electronic circuit interconnections
- Industrial control system module connections
- Consumer electronics assembly
Procurement Notes
Verify the specific manufacturer datasheet for complete electrical characteristics and mechanical dimensions before integration. Confirm that the supplier provides official documentation matching the part number 2041-2X04G00SB to ensure compliance with RoHS requirements and UL94 V-0 ratings. Cross-reference terminal plating specifications to guarantee long-term reliability in the intended operating environment.
Selection Notes
Select this component when a dual-row female socket with a standard 2.54mm pitch is required for through-hole applications. Ensure the mating header matches the 8-position count and straight orientation. Verify that the 2A current rating aligns with the circuit's power requirements and that the UL94 V-0 insulation rating satisfies safety standards for the target device.
Part Context
This part belongs to Oupiin's rectangular connector series, specifically designed as headers and receptacles. It serves as a female socket variant within the product line, offering a standardized interface for connecting printed circuit boards to other components or cables in various electronic assemblies.
Replacement Considerations
Compatible substitutes must maintain the 8-position count, dual-row layout, and 0.100 inch pitch. Ensure any alternative part supports through-hole mounting and offers equivalent current handling capabilities. Verify that the replacement also features gold-plated contacts and meets similar flammability standards.
