2041119-2

Edgeboard Connectors Overview

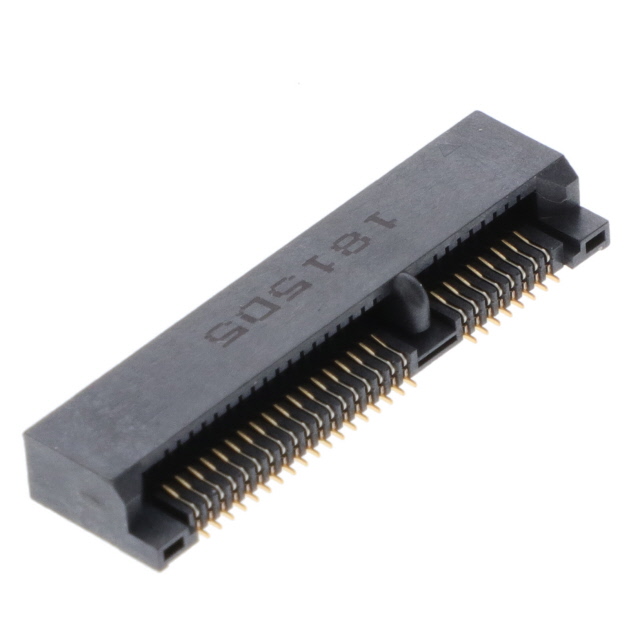

The TE Connectivity AMP Connectors part number 2041119-2 is a card edge connector designed for mSATA and mini PCI Express applications. It features a Type I configuration with four mounting holes (4H). The connector utilizes a right-angle surface mount installation type and accommodates female contacts. The contact finish is specified as 10 microinches of gold plating to ensure reliable signal transmission.

Edgeboard Connectors Feature Summary

• Designed specifically for mSATA and mini PCI Express interface standards
• Features a Type I housing structure with four mounting holes for secure board attachment
• Utilizes right-angle surface mount termination for compact vertical integration
• Incorporates female contact geometry for mating with compliant card edge fingers

Edgeboard Connectors Applications

• mSATA storage module interconnection
• Mini PCI Express expansion slot implementation
• Compact industrial computing hardware assembly
• Embedded system peripheral connectivity

Edgeboard Connectors Procurement Notes

Verify the specific revision level against the manufacturer's latest datasheet, as component specifications may evolve. Confirm that the required contact finish thickness aligns with the design requirements, noting the standard 10 microinch gold specification. Ensure compatibility with the target PCB footprint and mounting hole dimensions prior to finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a right-angle surface mount solution is required for mSATA or mini PCI Express form factors. The Type I housing provides structural stability through four mounting points. Ensure the design supports the necessary clearance for the right-angle orientation and validates the surface mount soldering profile for reliable joint formation during assembly.

Edgeboard Connectors Part Context

This component belongs to the broader category of card edge connectors manufactured by TE Connectivity AMP Connectors. It serves as a critical interface element within high-density electronic assemblies, bridging the connection between the main circuit board and modular expansion cards. Its design prioritizes mechanical retention and electrical continuity in space-constrained environments.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity documentation for verified substitute part numbers. Cross-reference alternative components based on identical pin count, row configuration, and mounting style to ensure functional equivalence without compromising mechanical fit or electrical performance.
