2044-1X02G00SB

Overview

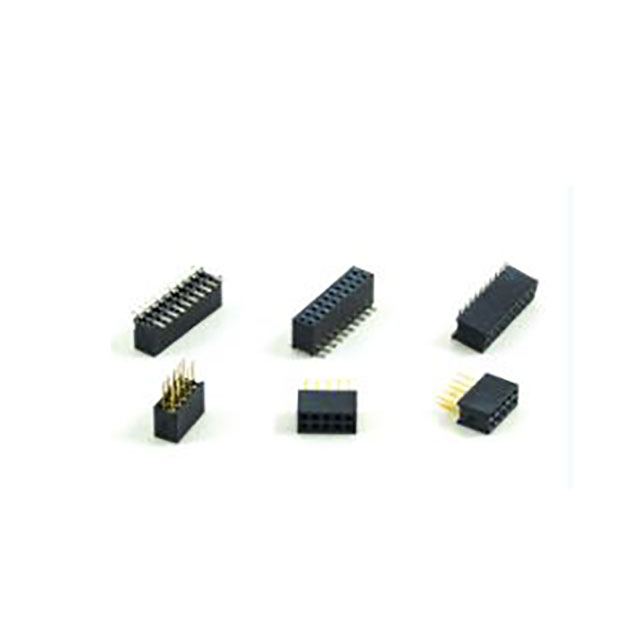

The Oupiin 2044-1X02G00SB is a rectangular board connector featuring two contacts arranged in a single row. It functions as a female straight socket with a 0.1-inch (2.54mm) mating pitch. The component utilizes solder termination for secure PCB attachment and includes locking features to ensure stable connection integrity.

Feature Summary

• Straight single-row female socket configuration
• Solder termination for through-hole mounting
• Locking mechanism for connection stability

Applications

• General-purpose board-to-board interconnects
• Electronic assembly requiring reliable signal paths
• Industrial control system circuitry

Procurement Notes

Verify the specific suffix codes against official Oupiin documentation to confirm exact pin count, plating type, and orientation. Ensure compatibility with mating header specifications before procurement. Cross-reference datasheet revisions to confirm material flammability ratings and current handling capabilities match design requirements.

Selection Notes

Select this component when a low-profile, single-row female connector is required for direct board stacking or cable assembly. Consider the 2.54mm pitch for standard spacing constraints. Evaluate the locking feature necessity for vibration-prone environments. Confirm that the solder termination method aligns with the manufacturing process capabilities of the target printed circuit board.

Part Context

This part belongs to the Oupiin 2044 series of rectangular connectors. The series offers various configurations including different contact counts and row arrangements. The 2044 series is designed for general electronic applications requiring robust mechanical retention and consistent electrical performance across diverse operating conditions.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify mechanical footprint and electrical specifications against alternative suppliers if sourcing changes are necessary.
