2044-1X05G00SB

Overview

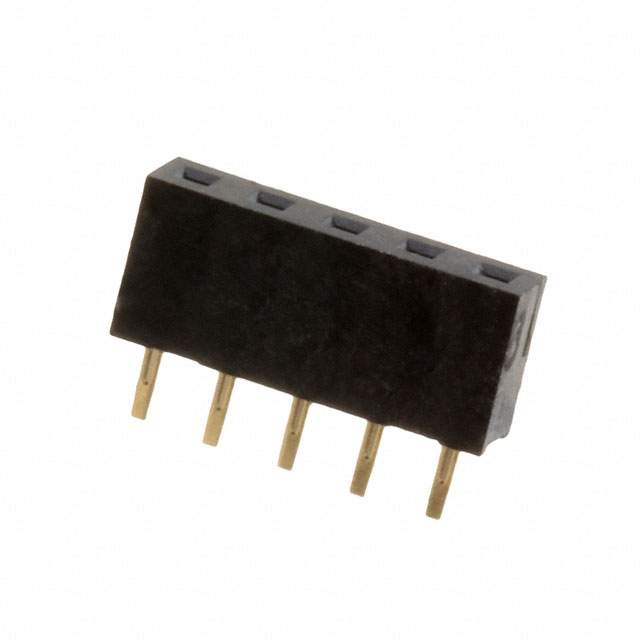

The Oupiin 2044-1X05G00SB is a single-row, straight PCB socket featuring five female contacts with a 0.1-inch pitch. It utilizes solder terminals for board mounting and incorporates locking mechanisms to secure connections. The component operates within a temperature range of -55°C to +105°C and supports a current rating of 2A. Constructed with copper alloy contacts and glass-filled polyester insulation, it meets UL94 V-0 flammability standards. The connector has an insulation height of approximately 8.51mm and a contact resistance of 20 mΩ.

Feature Summary

• Single-row female socket design with straight orientation for direct PCB integration
• Locking mechanism ensures secure mating stability during operation
• Solder termination style provides reliable electrical connection to circuit boards
• Glass-filled polyester insulation material offers structural integrity and flame resistance

Applications

• General-purpose electronic interconnection systems
• Low-power signal transmission circuits
• Consumer electronics assembly requiring compact board-to-board connections
• Industrial control modules with standard pin spacing requirements

Procurement Notes

Verify the specific ordering suffix against official Oupiin documentation to confirm exact pin count and termination type. Ensure compatibility with mating header specifications regarding pitch and row configuration. Confirm that the selected variant meets the required environmental operating temperatures and flammability ratings for the intended application environment before finalizing procurement orders.

Selection Notes

Select this component when a single-row, low-profile female socket is required for 0.1-inch pitch applications. Consider the 2A current rating and -55°C to +105°C operating range to ensure suitability for the target thermal and electrical loads. Verify that the straight, solder-mount form factor aligns with the PCB layout constraints and assembly process requirements of the design.

Part Context

This part belongs to the Oupiin 2044 series of PCB sockets, which are designed as low-cost interconnection solutions for multi-way circuits. The series includes various configurations such as double-row and different pin counts, offering flexibility for diverse board-to-board connection needs while maintaining consistent mechanical and electrical performance characteristics across the product line.

Replacement Considerations

Publicly confirmed substitute part numbers for this specific model are not available in the provided documentation. Users should consult official Oupiin resources or authorized distributors for verified cross-reference data and compatible alternatives that match the precise electrical and mechanical specifications.
