2044-1X16G00SA

Overview

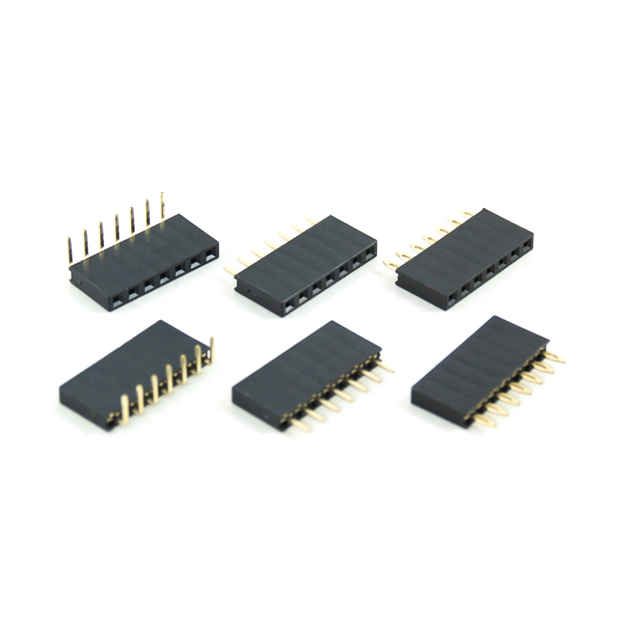

The Oupiin 2044-1X16G00SA is a 16-position female socket connector designed for through-hole PCB mounting. It features a 0.100-inch (2.54mm) pitch and utilizes gold-plated phosphor bronze contacts to ensure reliable signal transmission. The housing is constructed from glass-filled PBT material, providing structural integrity and thermal resistance. This component supports a current rating of 2A and offers a dielectric voltage withstand capability of 1000V AC. The straight single-row configuration facilitates straightforward integration into electronic assemblies requiring secure mating with header pins.

Feature Summary

• Gold-plated phosphor bronze contacts provide corrosion resistance and stable electrical conductivity
• Glass-filled PBT housing ensures mechanical stability and heat resistance
• Through-hole solder termination guarantees robust mechanical attachment to the PCB

Applications

• General electronic circuit interconnections
• Industrial control system wiring
• Consumer electronics assembly

Procurement Notes

Verify that the specific part number matches the required 16-position configuration and 2.54mm pitch before ordering. Confirm RoHS compliance status if environmental regulations apply to your manufacturing process. Ensure the through-hole footprint on the target PCB aligns with the standard dimensions for this series to guarantee proper fit and solder joint integrity during assembly.

Selection Notes

Select this component when a single-row, 16-pin female receptacle is required for direct PCB mounting. The 2A current rating and 1000V AC dielectric strength suit low-to-medium power signal applications. Consider the gold plating for environments where oxidation resistance is critical. Verify that the straight orientation fits within the available vertical clearance of the enclosure design.

Part Context

This part belongs to the Oupiin 2044 series of rectangular connectors. The series includes various position counts, such as 7, 20, and other configurations, all sharing the same 0.100-inch pitch and general construction standards. The 2044-1X16G00SA specifically denotes the 16-position variant within this standardized family of headers and sockets.

Replacement Considerations

Direct substitutes must match the 16-position count, 2.54mm pitch, and through-hole termination style. Verify that alternative components offer equivalent current ratings and dielectric strengths. Check housing material compatibility and contact plating specifications to ensure performance parity in the intended application environment.
