Product Detailed Parameters
- Description：PCB SOCKET, 16 PIN, STRAIGHT.8.5
- Series：2046
- Mfr：Oupiin
- Package：Tray
- Connector Type：Socket
- Contact Type：Female Socket
- Style：Board to Board
- Number of Positions：16
- Number of Positions Loaded：12
- Pitch - Mating：0.100" (2.54mm)
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Insulation Color：-
- Insulation Height：0.335" (8.50mm)
- Contact Length - Post：0.126" (3.20mm)
- Operating Temperature：-55°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Polarizing Key
- Current Rating (Amps)：2A
- Voltage Rating：-
Download product information
Overview

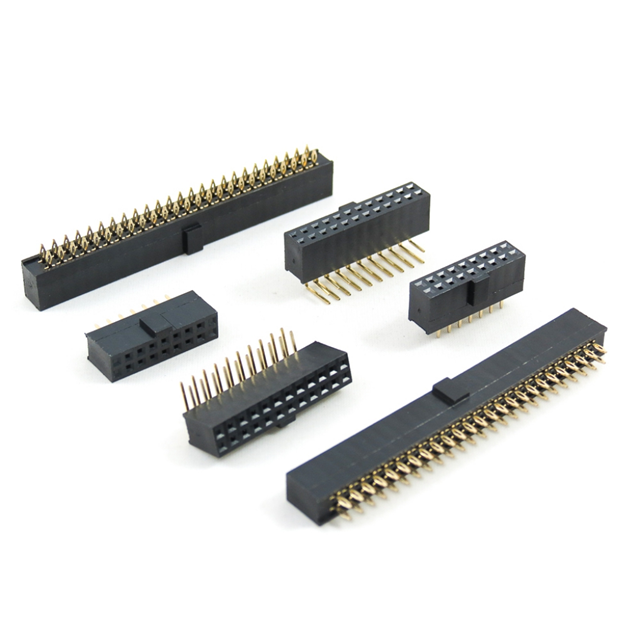

The Oupiin 2046-16G00SA is an active female socket connector designed for board-to-board applications. It features a double-row configuration with 16 positions and a 2.54mm pitch. The unit utilizes push-pull fastening mechanisms and gold-plated copper alloy contacts housed in glass-filled PBT material. It meets UL94 V-0 flammability standards and complies with RoHS3 regulations, ensuring reliable electrical performance in industrial environments.
Feature Summary
- Push-pull fastening mechanism for secure connection
- Gold-plated copper alloy contact material
- Glass-filled PBT housing with UL94 V-0 rating
Applications
- Board-to-board interconnections
- Industrial manufacturing systems
- Communication equipment interfaces
Procurement Notes
Verify the specific suffix 'G00SA' against official Oupiin documentation to confirm exact plating thickness and housing color specifications. Ensure compatibility with mating male headers regarding pitch and row alignment. Cross-reference RoHS3 compliance status with current regulatory requirements before integration into final assemblies.
Selection Notes
Select this component when a double-row female socket with push-pull retention is required. Confirm that the 2.54mm pitch matches the target PCB footprint. Verify that the glass-filled PBT material properties meet thermal and mechanical stress requirements of the intended application environment.
Part Context
This part belongs to the Oupiin 2046 series of connectors, which are manufactured using fully automated processes. Oupiin specializes in high-volume connector production for communication and computer industries, maintaining ISO 9001 registration and adherence to safety standards specified by UL, CUL, and CSA agencies.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source data. Consult official Oupiin documentation for direct replacements or cross-reference compatible components from other manufacturers based on identical pinout and mechanical dimensions.
