Product Detailed Parameters
- Description：PCB SOCKET, SINGLE ROW, 17 PINS,
- Series：2047
- Mfr：Oupiin
- Package：Tube
- Connector Type：Elevated Socket
- Contact Type：Female Socket
- Style：Board to Board
- Number of Positions：17
- Number of Positions Loaded：All
- Pitch - Mating：0.100" (2.54mm)
- Number of Rows：1
- Row Spacing - Mating：-
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Insulation Color：Black
- Insulation Height：0.735" (18.67mm)
- Contact Length - Post：0.181" (4.60mm)
- Operating Temperature：-55°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：2A
- Voltage Rating：-
Download product information
Overview

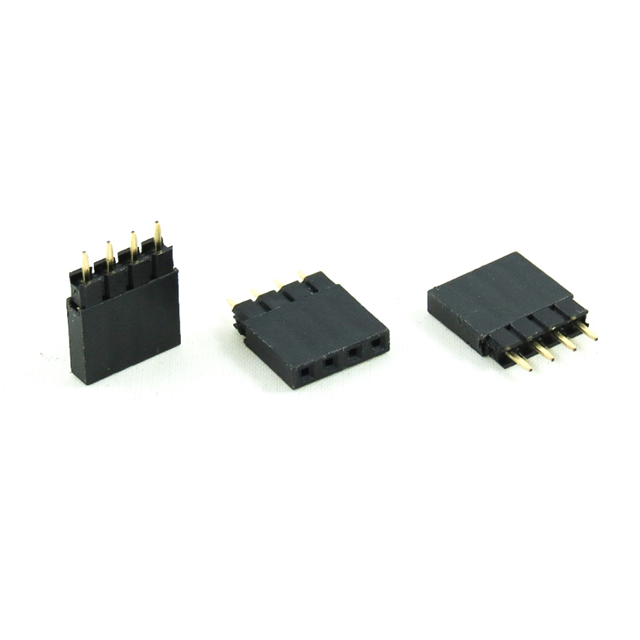

The Oupiin 2047-1X17G00S8U is a single-row elevated PCB socket connector designed for through-hole mounting. It features 17 contacts with a 0.100-inch (2.54mm) pitch and gold-plated terminals to ensure reliable signal transmission. The component is RoHS compliant and lead-free, adhering to environmental standards. Its elevated design facilitates vertical integration on printed circuit boards, providing mechanical stability and consistent contact performance in electronic assemblies.
Feature Summary
- Single-row elevated socket configuration for vertical PCB mounting
- Gold-plated terminals ensuring durable electrical connectivity
- RoHS compliant and lead-free construction
Applications
- General-purpose electronic circuit board interconnections
- Industrial control system module interfaces
- Consumer electronics assembly
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to confirm terminal plating thickness and mating force specifications. Ensure that the selected variant matches the required through-hole footprint dimensions and row spacing parameters for the target application.
Selection Notes
Select this component when a single-row, right-angle or straight elevated socket is required for 17-position connections. Confirm that the 0.100-inch pitch aligns with the mating header specifications. Evaluate the through-hole mounting style against available board space and mechanical stress requirements.
Part Context
This part belongs to the Oupiin series of board connectors, specifically designed for general electronic applications. It represents a standard solution for single-row interconnects, offering a balance of mechanical reliability and electrical performance for mass-produced electronic devices.
Replacement Considerations
Consult official cross-reference lists for direct substitutes. Verify that any alternative maintains the same 17-contact count, 0.100-inch pitch, and through-hole mounting configuration to ensure mechanical compatibility.
