Product Detailed Parameters
- Description：PCB SOCKET, DOUBLE ROW, 10 PIN,
- Series：2047
- Mfr：Oupiin
- Package：Tube
- Connector Type：Elevated Socket
- Contact Type：Female Socket
- Style：Board to Board
- Number of Positions：10
- Number of Positions Loaded：All
- Pitch - Mating：0.100" (2.54mm)
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Insulation Color：Black
- Insulation Height：0.535" (13.59mm)
- Contact Length - Post：0.191" (4.85mm)
- Operating Temperature：-55°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：2A
- Voltage Rating：-
Download product information
Overview

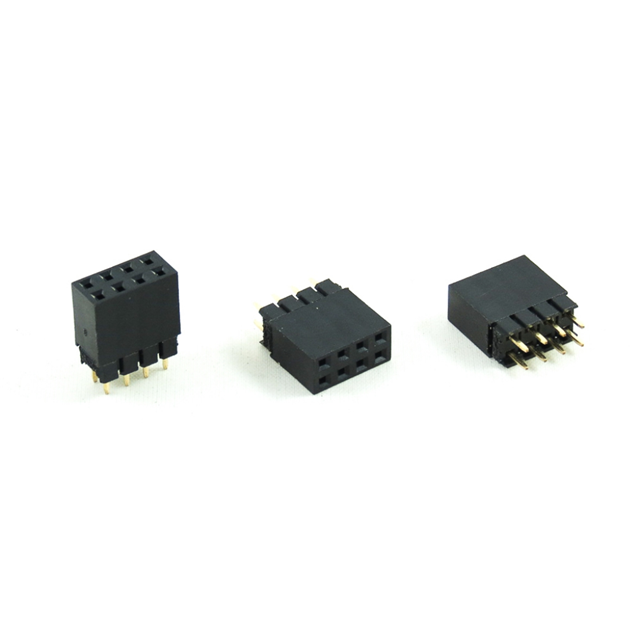

The Oupiin 2047-2X05G00S3U is a 10-position elevated socket connector designed for through-hole PCB mounting. It features a double-row female configuration with a 0.100 inch (2.54mm) contact pitch. The contacts are gold-plated brass, ensuring reliable signal transmission. This component belongs to the 2047 series and is RoHS compliant.
Feature Summary
- Elevated socket design for secure board integration
- Double-row female socket configuration
- Gold-plated brass contacts for conductivity
Applications
- General electronic circuit interconnections
- PCB-to-PCB vertical connections
- Industrial control system modules
Procurement Notes
Verify the specific pin count and row configuration against the target PCB footprint before procurement. Confirm that the through-hole mounting style matches the assembly process requirements. Ensure compliance with RoHS standards if required by the end product specifications.
Selection Notes
Select this component when a low-profile, double-row female connection is required for 0.100 inch pitch applications. Consider the elevated height for clearance needs and verify that the through-hole termination method aligns with the manufacturing capabilities of the production line.
Part Context
This part is part of the Oupiin 2047 series of rectangular connectors. It serves as a standard interface solution for connecting male pins or headers to printed circuit boards. The series offers various pin counts and configurations to support diverse electronic assembly needs.
Replacement Considerations
Cross-reference with other 10-pin, double-row, 0.100 inch pitch elevated sockets from different manufacturers. Ensure mechanical dimensions, terminal type, and electrical ratings match the original design specifications before substitution.
