Product Detailed Parameters
- Description：PCB SOCKET, TRIPLE ROW, 48 PIN,
- Series：2047
- Mfr：Oupiin
- Package：Tube
- Connector Type：Elevated Socket
- Contact Type：Female Socket
- Style：Board to Board
- Number of Positions：48
- Number of Positions Loaded：All
- Pitch - Mating：0.100" (2.54mm)
- Number of Rows：3
- Row Spacing - Mating：0.100" (2.54mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Insulation Color：Black
- Insulation Height：0.635" (16.13mm)
- Contact Length - Post：0.091" (2.30mm)
- Operating Temperature：-55°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：2A
- Voltage Rating：-
Download product information
Overview

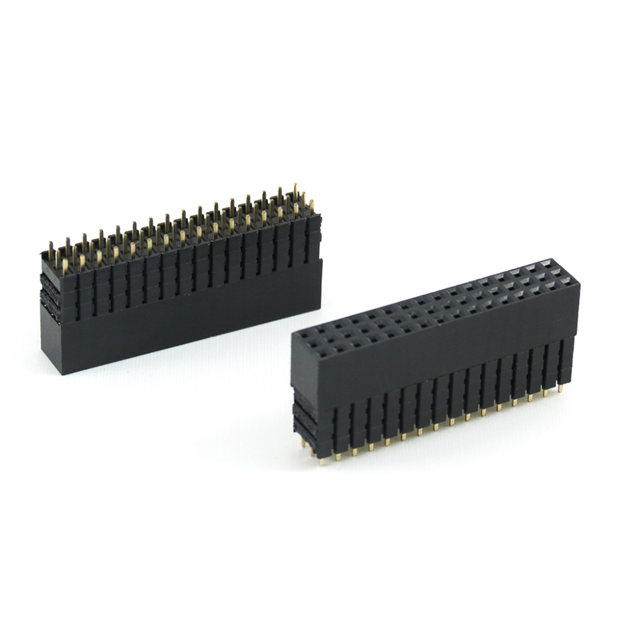

The Oupiin 2047-3X16G00S4U is a PCB socket connector featuring a triple row configuration with 48 positions. It utilizes a 0.100 inch (2.54mm) pitch for mating connections and employs through-hole mounting technology. The contact surfaces are finished with gold plating to ensure reliable signal transmission. This component is designed as a female receptacle suitable for integration into printed circuit board assemblies requiring high-density interconnect solutions.
Feature Summary
- Triple row architecture providing increased pin density within a compact footprint
- Gold-plated contacts engineered for durable electrical connectivity
- Through-hole mounting style ensuring secure mechanical attachment to the substrate
Applications
- General purpose electronic circuit board assemblies
- Industrial control system interconnections
- Consumer electronics hardware modules
Procurement Notes
Verify that the specific part number matches the required triple row, 48-pin specification before procurement. Confirm RoHS compliance status aligns with project environmental regulations. Ensure the through-hole package type is compatible with the manufacturing assembly process and available PCB layout constraints.
Selection Notes
Select this component when a high-density female socket interface is required for through-hole applications. The 2.54mm pitch is standard for many legacy and general-purpose systems. Consider the triple row design if space efficiency is critical compared to single or dual-row alternatives.
Part Context
This part belongs to the Oupiin rectangular connectors category, specifically within headers and receptacles. It serves as a female socket solution for interconnecting circuits. The product line focuses on reliable interconnects for various electronic industries.
Replacement Considerations
Cross-reference with other triple row, 48-pin, 2.54mm pitch sockets from different manufacturers. Verify mechanical dimensions and pinout compatibility before substituting to ensure proper fit and function.
