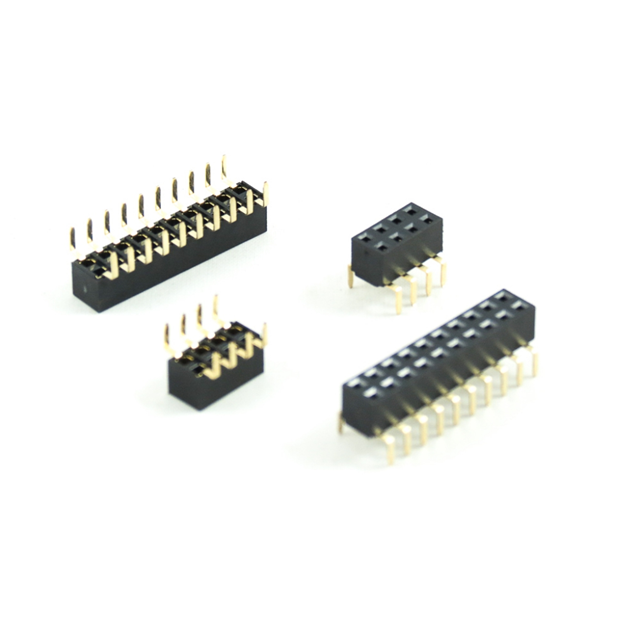

2048-2X03G00EU

$0.56

Description：PCB SOCKET, DOUBLE ROW, 6 PINS,
Series：2048
Mfr：Oupiin
Package：Tube

SKU:503ac55734d5 Category: Headers, Receptacles, Female Sockets Brand: Oupiin

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PCB SOCKET, DOUBLE ROW, 6 PINS,
Series：2048
Mfr：Oupiin
Package：Tube
Connector Type：Socket
Contact Type：Female Socket
Style：Board to Board
Number of Positions：6
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Insulation Color：-
Insulation Height：0.197" (5.00mm)
Contact Length - Post：0.126" (3.20mm)
Operating Temperature：-55°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：2A
Voltage Rating：-

Download product information

2048-2X03G00EU

Overview

The Oupiin 2048-2X03G00EU is a board connector featuring 6 contacts arranged in 2 rows. It is designed as a female, straight plug with a 0.1-inch pitch and solder terminals. The component utilizes gold-plated phosphor bronze contacts for reliable performance. Insulation is provided by glass-filled polybutylene terephthalate. This through-hole socket connector includes locking features to ensure secure mating.

Feature Summary

Female contact configuration for secure board-to-board connection
Gold-plated phosphor bronze contacts for corrosion resistance
Glass-filled polybutylene terephthalate insulation for stability
Integrated locking mechanism for reliable retention

Applications

General electronic equipment interconnects
Industrial control systems
Communication devices

Procurement Notes

Verify the specific part number against official Oupiin documentation to confirm contact count and termination style. Ensure compatibility with target PCB layout requirements. Check for RoHS compliance status if environmental regulations apply. Confirm that the locking feature meets mechanical retention needs for the assembly.

Selection Notes

Select this component when a low-profile, double-row female connector is required. Consider the 0.1-inch pitch for standard spacing applications. Evaluate the through-hole mounting method against surface-mount alternatives. Assess the current rating of 2A against circuit load requirements.

Part Context

This model belongs to the Oupiin 2048 series of board connectors. The series focuses on providing reliable interconnection solutions for various electronic applications. Oupiin manufactures these components using automated production processes to maintain quality consistency.
