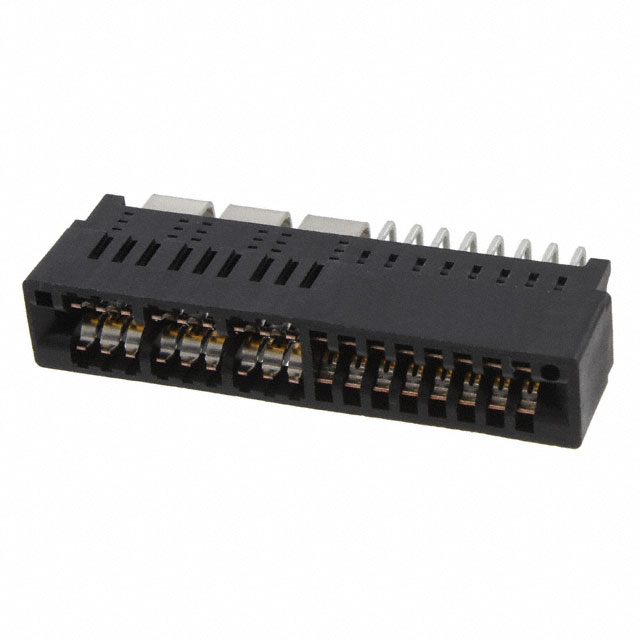

2057372-1 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN EDGE DUAL FMALE GOLD. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 2057372-1
- Description：CONN EDGE DUAL FMALE GOLD
- Series：Standard Edge II
- Mfr：TE Connectivity AMP Connectors
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：-
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：-
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Contact Material：Copper
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-55°C ~ 85°C
Edgeboard Connectors datasheet and documents for 2057372-1
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors part number 2057372-1 is a connector assembly classified under the SEC II Power series. It features a board-to-board connection system with a total of 11 positions, arranged in a single row. The component utilizes a centerline spacing of 2.54 mm (0.1 inches). The primary housing color is black. This product is identified as a power connector assembly designed for specific industrial or equipment applications requiring secure electrical interconnection.
Edgeboard Connectors Feature Summary
- Board-to-board connectivity architecture
- SEC II Power series classification
- Single-row configuration
Edgeboard Connectors Applications
- Industrial equipment power distribution
- Electronic device internal power connections
- Server infrastructure power modules
Edgeboard Connectors Procurement Notes
Verify current manufacturing status as multiple sources indicate this product may be discontinued or no longer manufactured. Confirm availability through authorized distributors and check for valid replacement alternatives if supply chain continuity is required for production planning.
Edgeboard Connectors Selection Notes
Select this component based on the requirement for a 11-position board-to-board power connector with 2.54 mm pitch. Ensure compatibility with the target PCB edge design and verify that the SEC II Power series specifications meet the voltage and current requirements of the application circuit.
Edgeboard Connectors Part Context
This component belongs to the TE Connectivity AMP Connectors portfolio, specifically within the SEC II Power series. It serves as a specialized interconnect solution for high-reliability power transmission between boards. The series is known for robust mechanical locking and stable electrical performance in demanding environments.
Edgeboard Connectors Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support for direct replacements or obsolescence management options.
