Edgeboard Connectors Overview

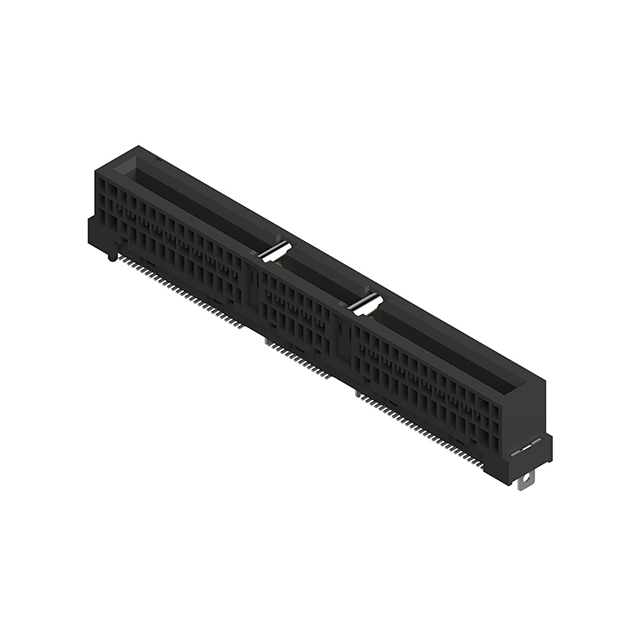

The Molex 206653-0084 is a vertical card edge connector from the SliverEdge series, designed for high-density applications. It features an 84-circuit configuration with a 0.60mm pitch and supports data rates up to 32 Gbps. The connector is engineered for a PCB thickness of 1.57mm and utilizes a dual female contact arrangement. This component facilitates reliable signal transmission in compact electronic assemblies requiring precise impedance control.

Edgeboard Connectors Feature Summary

• Vertical orientation design for space-constrained board stacking
• High-speed signal integrity support up to 32 Gbps
• Dual female contact interface for secure mating

Edgeboard Connectors Applications

• High-speed data communication modules
• Compact server backplanes
• Industrial control system interconnects

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix and packaging quantity against the manufacturer's current documentation before procurement. Confirm that the reel packaging aligns with automated assembly requirements. Ensure the part number matches the exact circuit count and pitch specifications required for the target PCB layout to avoid integration errors.

Edgeboard Connectors Selection Notes

Select this connector when a vertical form factor is required for 1.57mm thick PCBs. The 0.60mm pitch allows for high I/O density in limited board areas. Consider the 32 Gbps capability if the application involves high-bandwidth data transfer protocols requiring stable impedance characteristics.

Edgeboard Connectors Part Context

This component belongs to the Molex SliverEdge series, which specializes in low-profile, high-performance card edge connectors. The series is characterized by its ability to maintain signal integrity at high frequencies while offering various circuit counts and mounting orientations to suit diverse electronic design needs.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include part numbers such as 206653-0056 for different circuit counts. Verify mechanical compatibility and electrical specifications before cross-referencing with other manufacturers' offerings to ensure equivalent performance standards.
