2066530140

Edgeboard Connectors Overview

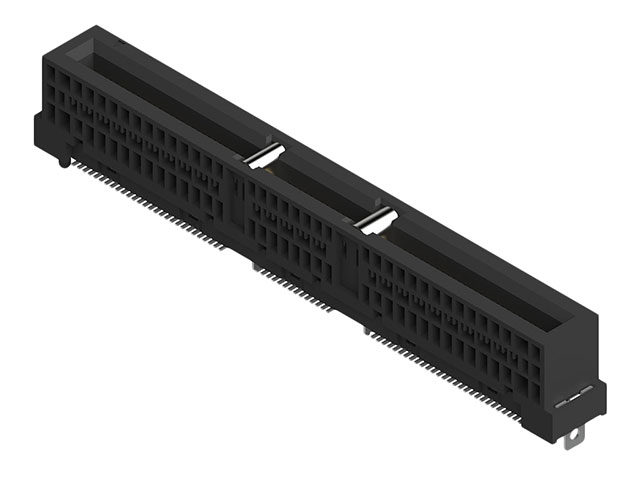

The Molex 2066530140 is a vertical card edge connector designed for high-speed data transmission. It features a 0.60mm pitch and supports dual edge connections with 140 positions. The component accommodates a PCB thickness of 1.57mm and utilizes gold-plated contacts for reliable signal integrity. Rated for 32 Gbps performance, it employs a surface-mount technology (SMD) termination method suitable for automated assembly processes.

Edgeboard Connectors Feature Summary

• Vertical orientation design facilitates compact board stacking configurations
• Gold-plated contact surfaces ensure durable electrical connectivity
• Surface-mount termination enables efficient automated manufacturing integration

Edgeboard Connectors Applications

• High-speed data interface modules requiring dense interconnects
• Telecommunications equipment utilizing standard card edge form factors
• Industrial control systems needing robust vertical mounting solutions

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating specifications and packaging type. Ensure the procurement documentation matches the exact 140-position requirement and 0.60mm pitch dimensions. Confirm compatibility with the target PCB thickness of 1.57mm before finalizing purchase orders to prevent mechanical fitment issues.

Edgeboard Connectors Selection Notes

Select this component when vertical mounting is required for dual-edge card applications. The 0.60mm pitch allows for higher density compared to standard connectors. Verify that the system design supports the specified 1.57mm card thickness and requires surface-mount assembly capabilities for production efficiency.

Edgeboard Connectors Part Context

This part belongs to the Molex 206653 series, which focuses on sliver edge card connectors. The series provides options for various circuit counts while maintaining consistent 0.60mm pitch characteristics. The 2066530140 specifically addresses the need for 140-circuit vertical interconnects in space-constrained electronic assemblies.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and orientation but different pin counts. Verify mechanical footprint compatibility before considering alternative models from other manufacturers.
