Edgeboard Connectors Overview

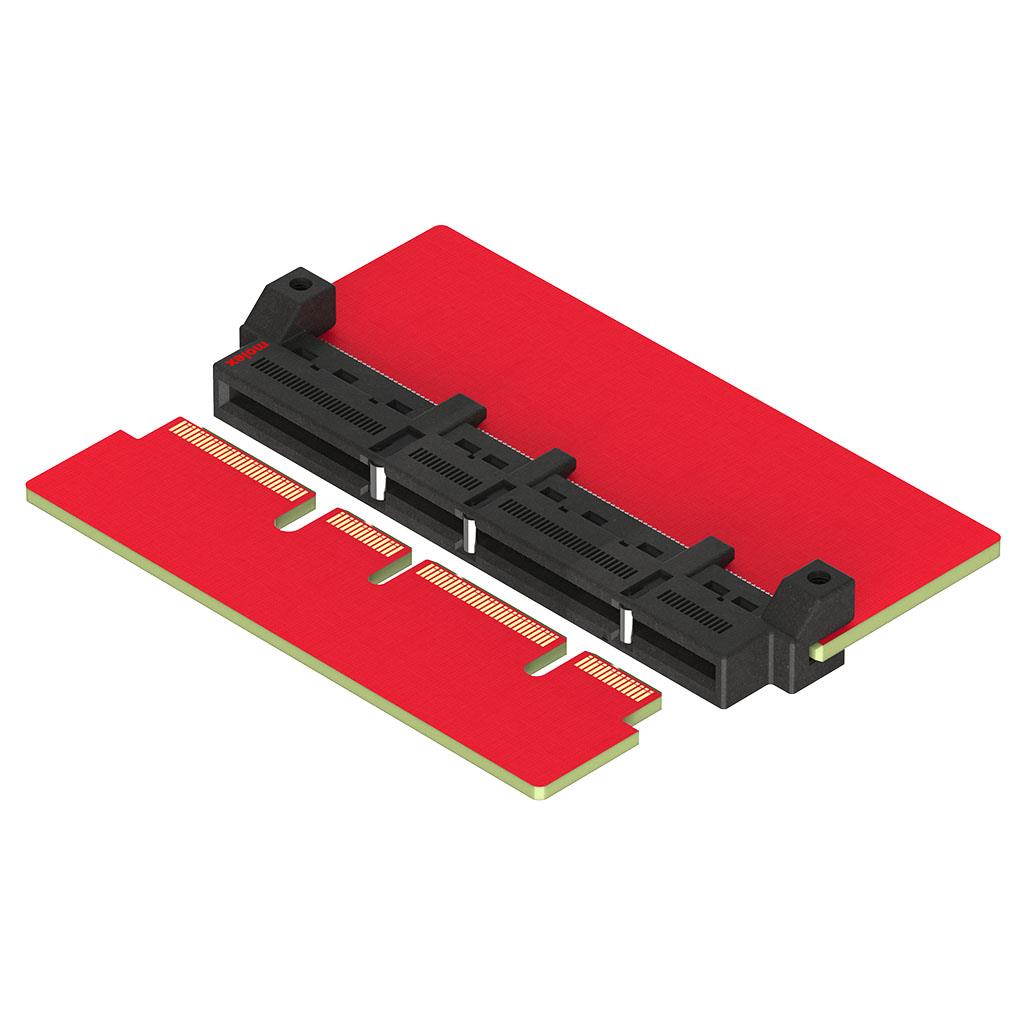

The Molex 207262-0193 is a standard card edge connector from the SliverEdge series, designed for vertical mounting. It features a 0.60mm pitch and supports 140 circuits in a 4-column configuration. The component is rated for a maximum voltage of 29V AC (RMS)/DC and data transmission speeds up to 32 Gbps. It accommodates a PCB thickness of 1.93mm and includes a metal key for alignment.

Edgeboard Connectors Feature Summary

• Vertical straddle-mount design for secure board attachment
• High-speed signal integrity support up to 32 Gbps
• Integrated metal key for precise orientation

Edgeboard Connectors Applications

• High-density electronic interconnects
• Telecommunications equipment
• Industrial automation systems

Edgeboard Connectors Procurement Notes

Verify the specific part number suffix against official Molex documentation to ensure correct packaging and compliance status. Confirm RoHS and REACH declarations directly with the manufacturer or authorized distributor prior to procurement. Cross-reference the datasheet revision date to ensure compatibility with current manufacturing standards.

Edgeboard Connectors Selection Notes

Select this connector when a vertical, high-pin-count interface is required for thin PCBs. Ensure the target board thickness matches the 1.93mm specification. Verify that the application environment does not exceed the 29V RMS/DC voltage rating. Confirm that the 0.60mm pitch aligns with the mating card edge dimensions.

Edgeboard Connectors Part Context

This component belongs to the Molex SliverEdge family, which specializes in compact, high-performance card edge connectors. The series is engineered for applications requiring reliable connections in space-constrained environments. The 207262 series specifically targets high-speed data transmission needs within standard industrial and commercial form factors.

Edgeboard Connectors Replacement Considerations

Consult official Molex substitution guides for verified alternatives. Generic equivalents may not match the 0.60mm pitch or 32 Gbps performance specifications. Verify mechanical fit and electrical ratings before considering any substitute components.
