2085133-3

Edgeboard Connectors Overview

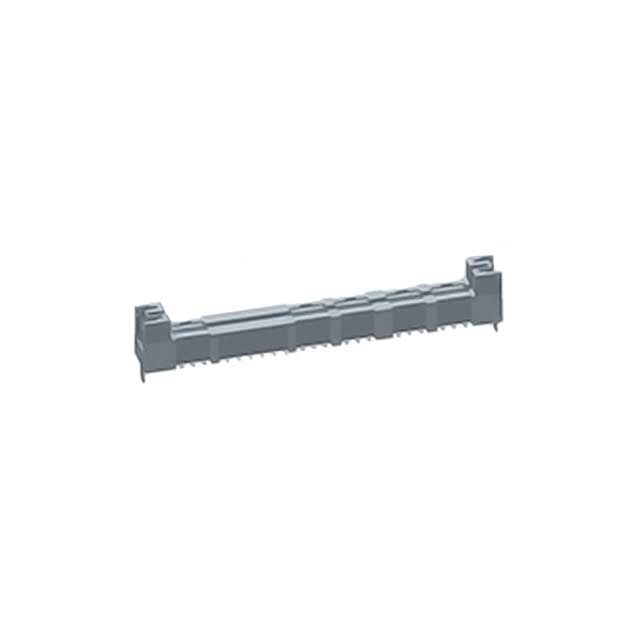

The TE Connectivity AMP Connectors part number 2085133-3 is a 34-position female VRM edgeboard connector. It features a dual-row configuration with a 0.062-inch (1.57mm) card thickness specification. The contacts are constructed from copper alloy and finished with gold plating, specifically 30.0µin (0.76µm) thick. Designed for surface mount installation via solder termination, the housing is black and made of glass-fiber reinforced thermoplastic polyester. The component operates within a temperature range of -55°C to 105°C and includes board lock features.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for high-density interconnect applications
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Board lock mechanism provides secure mechanical retention
• Surface mount solder termination facilitates automated PCB assembly

Edgeboard Connectors Applications

• High-speed data processing systems requiring VRM interface standards
• Industrial control boards utilizing edgeboard connectivity
• Telecommunications equipment with dual-row signal routing needs
• Embedded computing modules requiring robust surface mount connectors

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, plating thickness, and packaging type. Ensure compatibility with the target PCB footprint and mating card dimensions before procurement. Cross-reference the RoHS compliance status and material declarations with current regulatory requirements for the intended market.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female VRM connector with surface mount capabilities is required. The 34-position count and 0.062-inch card thickness must match the system design constraints. Consider the operating temperature range and board lock feature for environmental stability. Verify that the solder termination method aligns with the manufacturing process capabilities.

Edgeboard Connectors Part Context

This connector belongs to the Mini Crown Edge series by Elcon, a brand under TE Connectivity. The series is designed for high-performance edgecard applications. The 2085133-3 variant specifically addresses the need for reliable dual-row connections in compact form factors. It supports standard VRM interfaces commonly used in modular electronic systems.

Edgeboard Connectors Replacement Considerations

Consult the official TE Connectivity replacement guide for direct substitutes. Verify pin count, row configuration, and mounting style compatibility. Ensure electrical ratings and physical dimensions match the original design specifications.
