Edgeboard Connectors Overview

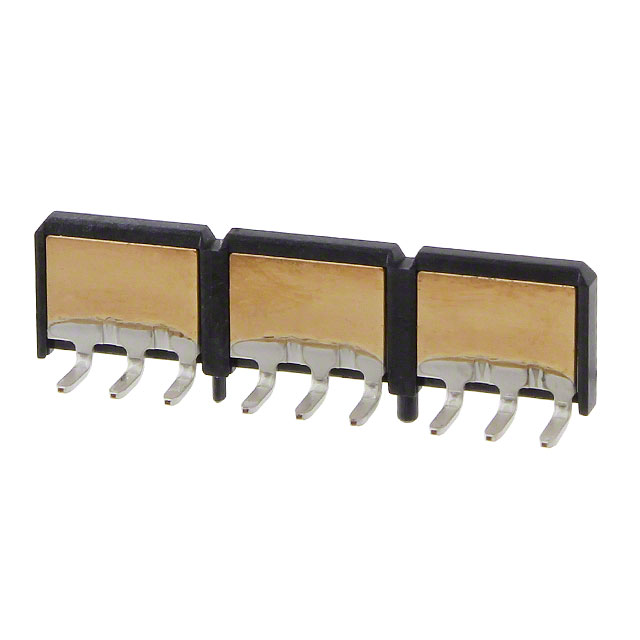

The TE Connectivity AMP Connectors part number 2085196-1 is a Standard Edge Card (SEC) II connector designed for high-reliability applications. It features a dual-edge male configuration with 6 positions, utilizing copper alloy contacts finished with a gold plating of 30.0µin thickness to ensure excellent conductivity and corrosion resistance. The component is classified as a Mini Crown Edge connector, specifically the Conn Blade MC-P3S0 variant. It supports standard card edge interfaces and is RoHS compliant.

Edgeboard Connectors Feature Summary

• Dual-edge male contact configuration for secure board insertion
• Gold-plated copper alloy contacts providing superior conductivity
• EMI shielding capabilities integrated into the design
• Mini Crown Edge structural form factor

Edgeboard Connectors Applications

• High-density data transmission systems
• Industrial control equipment interconnects
• Telecommunications infrastructure modules
• Automotive electronic system connections

Edgeboard Connectors Procurement Notes

Verify that the specific procurement order matches the exact part number 2085196-1 to ensure compatibility with SEC II standards. Confirm that the required gold plating thickness of 30.0µin meets the application's conductivity requirements. Ensure the dual-edge male configuration aligns with the target PCB design specifications before finalizing purchase orders.

Edgeboard Connectors Selection Notes

Select this component when a robust dual-edge connection is required for SEC II compatible boards. The gold finish offers necessary durability against corrosion in demanding environments. Consider the 6-position layout for space-constrained designs requiring reliable signal integrity without excessive footprint usage.

Edgeboard Connectors Part Context

This component belongs to the broader TE Connectivity AMP Connectors portfolio, which specializes in reliable interconnection solutions. The AMP brand has a historical foundation in developing press-fit and crimping technologies for harsh environments. This specific model represents an evolution in edge card connectivity, focusing on miniaturization and enhanced signal performance.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity documentation for verified substitute part numbers within the SEC II or Mini Crown families. Generic cross-references may not guarantee identical electrical characteristics or mechanical fitment.
