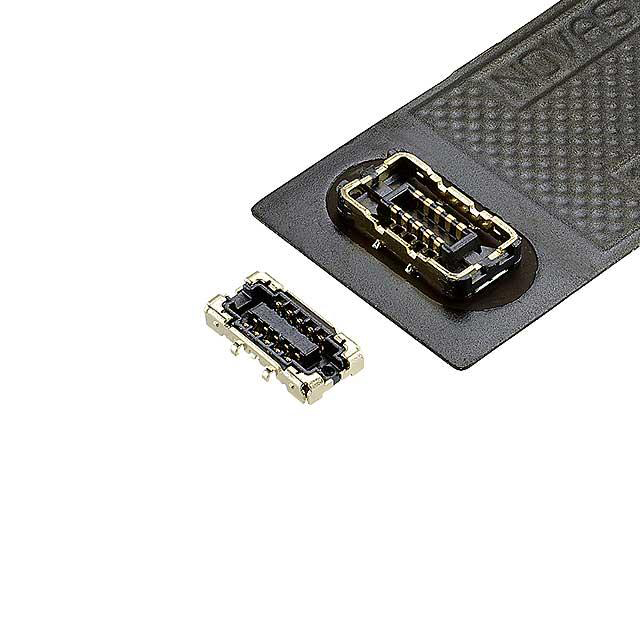

Arrays, Edge Type, Mezzanine (Board To Board) 20865-030E-03 product image

20865-030E-03

$2.19

Description：NOVASTACK 35-HDN RECEPTACLE 30P
Series：NOVASTACK® 35-HDN
Mfr：I-PEX
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f72d79bbb105 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: I-PEX

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

20865-030E-03 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists I-PEX. Its product description is NOVASTACK 35-HDN RECEPTACLE 30P. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 20865-030E-03

Description：NOVASTACK 35-HDN RECEPTACLE 30P
Series：NOVASTACK® 35-HDN
Mfr：I-PEX
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle, Center Strip Contacts
Number of Positions：30
Pitch：0.014" (0.35mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Shielded
Contact Finish：Gold
Contact Finish Thickness：1.97µin (0.050µm)
Mated Stacking Heights：0.7mm
Height Above Board：0.023" (0.59mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 20865-030E-03

20865-030E-03
