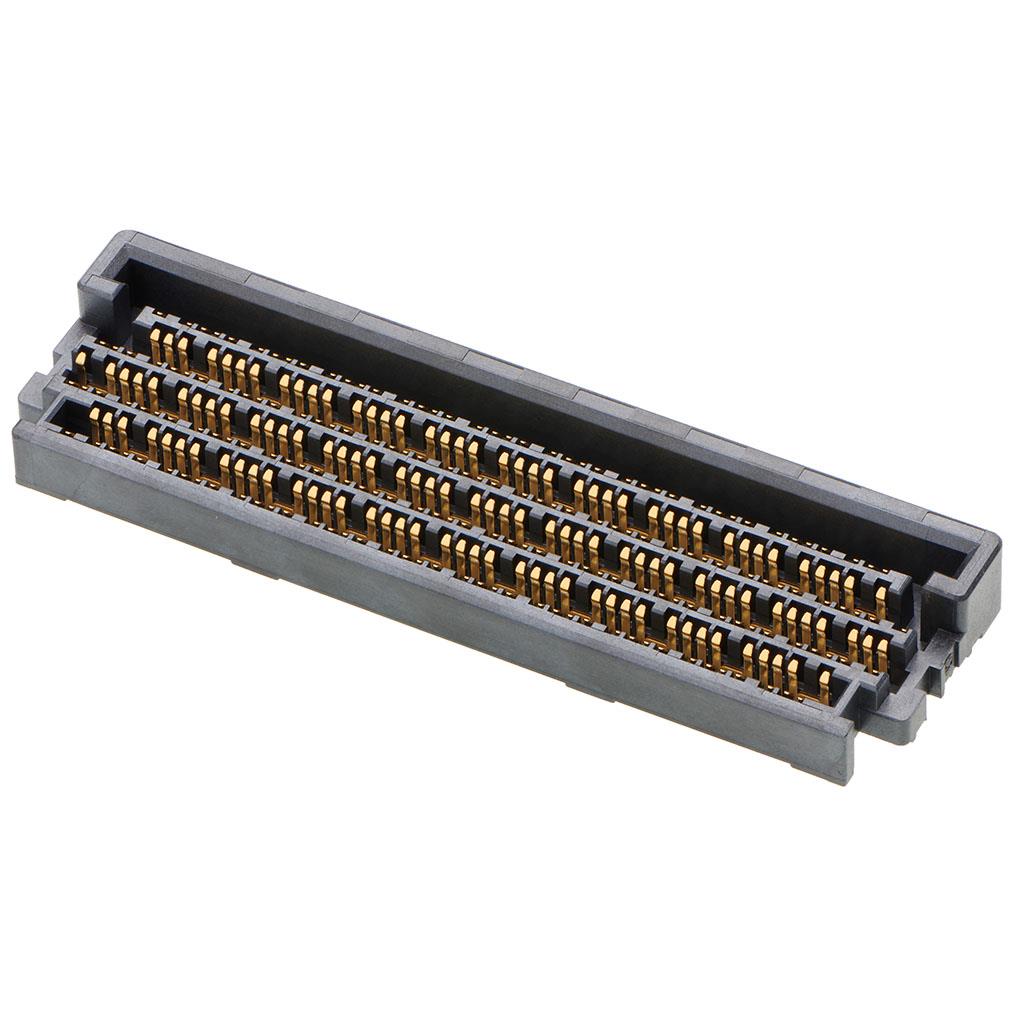

Arrays, Edge Type, Mezzanine (Board To Board) 2091410002 product image

2091410002

$37.42

Description：ASSY MIRROR MEZZ 10PX7R 2.5MM
Series：Mirror Mezz 209141
Mfr：Molex
Package：Bulk

SKU:6b8f145b8e98 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2091410002 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Molex. Its product description is ASSY MIRROR MEZZ 10PX7R 2.5MM. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 2091410002

Description：ASSY MIRROR MEZZ 10PX7R 2.5MM
Series：Mirror Mezz 209141
Mfr：Molex
Package：Bulk
Connector Type：High Density Array, Female
Number of Positions：292
Pitch：-
Number of Rows：7
Mounting Type：Surface Mount
Features：Board Guide, Pick and Place
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Mated Stacking Heights：5mm
Height Above Board：0.183" (4.65mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 2091410002

2091410002
