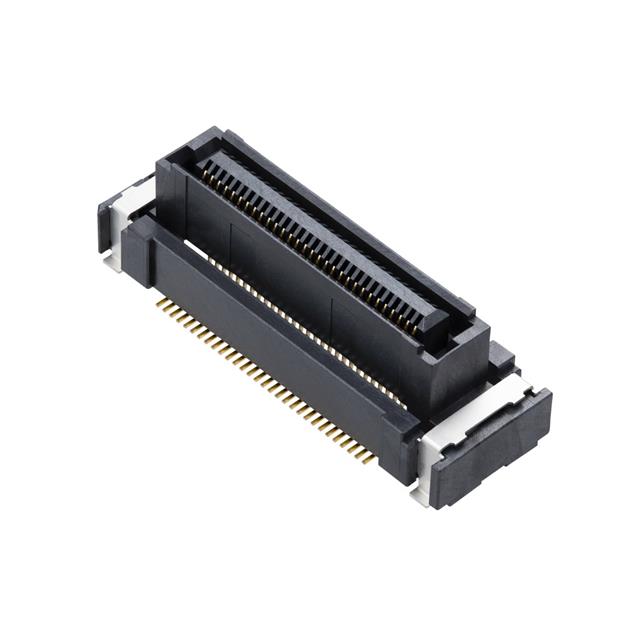

Arrays, Edge Type, Mezzanine (Board To Board) 2091680801 product image

2091680801

$9.54

Description：0.635 FLOATING BB REC ASSY 80CKT
Series：SlimStack 209168
Mfr：Molex
Package：Bulk

SKU:d90161992500 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2091680801 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Molex. Its product description is 0.635 FLOATING BB REC ASSY 80CKT. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 2091680801

Description：0.635 FLOATING BB REC ASSY 80CKT
Series：SlimStack 209168
Mfr：Molex
Package：Bulk
Connector Type：Receptacle, Floating
Number of Positions：80
Pitch：0.026" (0.65mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Board Guide, Pick and Place, Solder Retention
Contact Finish：Gold
Contact Finish Thickness：3.94µin (0.100µm)
Mated Stacking Heights：11mm, 12mm, 13mm, 14mm, 15mm, 16mm
Height Above Board：0.382" (9.70mm)
