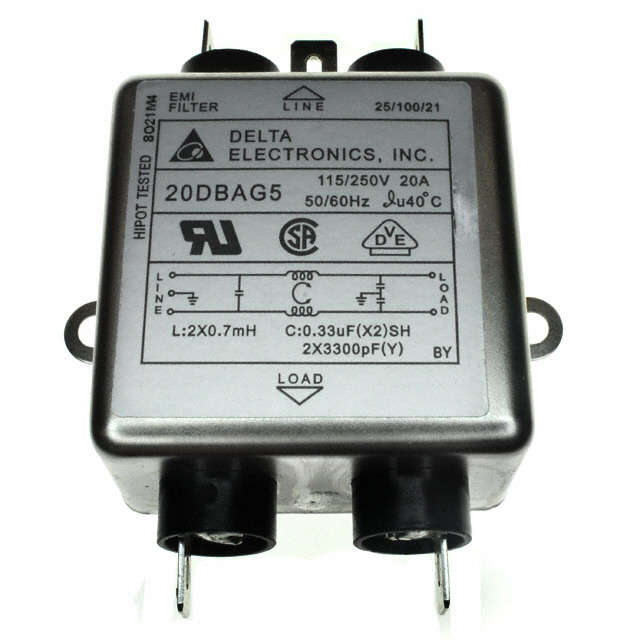

20DBAG5

$14.77

Description：LINE FILTER 115V/250VAC 20A CHAS
Series：DB
Mfr：Delta Electronics
Package：Box

SKU:660d1b9c04e5 Category: Power Line Filter Modules Brand: Delta Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 115V/250VAC 20A CHAS
Series：DB
Mfr：Delta Electronics
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：115V, 250V
Current：20 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：700µH
Voltage - Rated AC (Phase to Phase)：-

Download product information

20DBAG5

Overview

The Delta Electronics 20DBAG5 is a single-stage EMI power line filter designed for general-purpose applications. It supports rated AC voltages of 115V and 250V with an operating frequency of 50/60Hz. The component handles a current rating of 20A and utilizes chassis mounting with lug-lug connections.

Feature Summary

Single-stage EMI filtering configuration
Chassis mount design with lug terminals

Applications

General purpose electronic equipment
Industrial control systems
Power supply input stages

Procurement Notes

Verify availability status as the 20DBAG5 is listed as obsolete and no longer manufactured by Delta Electronics. Confirm exact specifications from the original product datasheet before integration into new designs due to discontinuation.

Selection Notes

Consider this component only for maintenance or legacy system repairs where specific form factor compatibility is required. New designs should evaluate current equivalent products from the manufacturer's active portfolio to ensure long-term supply chain stability.

Part Context

This part belongs to the Delta Electronics 20DB series of general purpose filters. It is a single-phase EMC/EMI line filter intended for noise suppression in AC power lines. The device is manufactured in Thailand and weighs approximately 6 ounces.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users must consult Delta Electronics directly for current equivalents or alternative solutions.
