Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 20A CHAS
- Series：DB
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (8-32)
- Inductance：600µH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

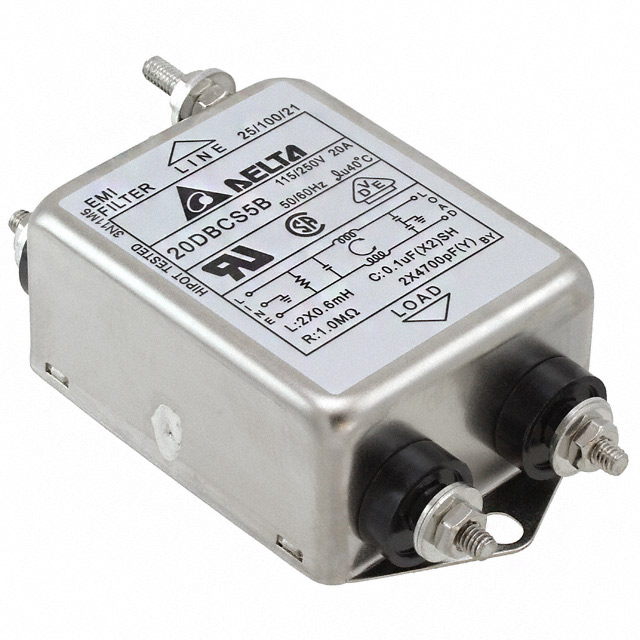

The Delta Electronics 20DBCS5B is a single-phase, single-stage general-purpose power line filter designed for chassis mounting. It features a current rating of 20 A and voltage ratings of 115 VAC and 250 VAC, operating at frequencies of 50 Hz and 60 Hz. The unit utilizes tab connectors for termination and holds UL, CSA, and VDE compliance certifications. This component belongs to the DB series and is classified under power condition subcategories.
Feature Summary
- Single-stage EMI/RFI attenuation for single-phase AC power lines
- Chassis mount construction with tab connector terminations
- Certified for international safety standards including UL, CSA, and VDE
Applications
- General purpose industrial equipment power conditioning
- Single-phase machinery noise suppression
- Compliance enhancement for electronic enclosures
Procurement Notes
Verify end-of-life status carefully as discontinuation notifications exist. Confirm tab connector compatibility with existing panel layouts. Ensure input voltage matches 115V or 250VAC requirements. Check for updated replacement models from Delta Electronics before finalizing procurement plans due to potential supply chain changes.
Selection Notes
Select this model for applications requiring single-phase filtering with 20A capacity. Verify that chassis mounting space accommodates the physical dimensions. Ensure terminal block style matches wiring harnesses. Consider thermal management requirements within the enclosure design for continuous operation at rated current.
Part Context
This component is part of Delta Electronics' DB series of general-purpose filters. It serves as an electromagnetic interference suppression device for AC power inputs. The product falls under the broader category of power line filters used in industrial and commercial power distribution systems to maintain signal integrity.
Replacement Considerations
Consult official Delta Electronics documentation for confirmed substitute part numbers. Verify electrical specifications match exactly if cross-referencing with other manufacturers. Ensure mechanical mounting interfaces are compatible with existing chassis designs.
