Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 20A CHAS
- Series：DK
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：1.4mH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

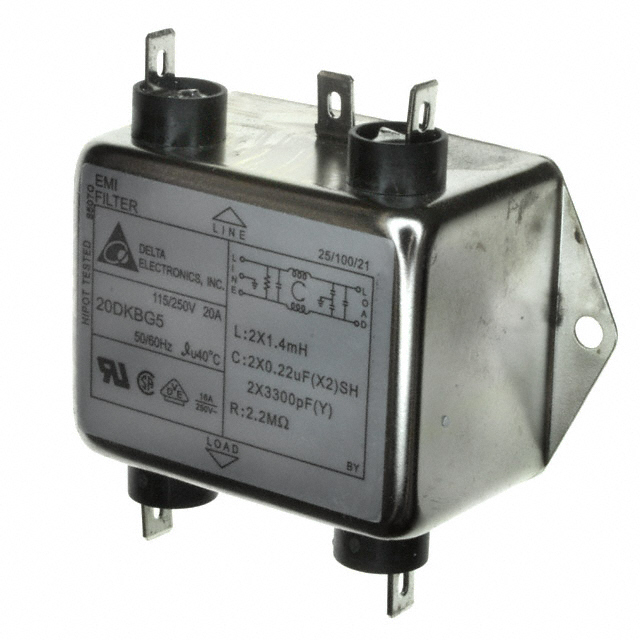

The Delta Electronics 20DKBG5 is a single-phase, general-purpose power line filter designed for chassis mounting. It operates at rated voltages of 115 VAC and 250 VAC with a current rating of 20 A. The unit supports frequencies of 50 Hz and 60 Hz and utilizes lug connectors for termination. It features a single-stage filtering architecture to suppress electromagnetic interference.
Feature Summary
- Provides effective suppression of both line-to-line and line-to-ground noise
- Features UL recognition, CSA certification, and VDE approval
- Designed for chassis mounting applications
Applications
- General-purpose electronic equipment power conditioning
- Industrial control systems requiring EMI/RFI suppression
- Power supply input stages for AC mains operation
Procurement Notes
Verify the specific datasheet version before procurement as component specifications may evolve. Confirm that the lug connector type matches the terminal block requirements of the target assembly. Ensure the chassis mounting holes align with the mechanical drawing dimensions provided in the official documentation to prevent installation issues.
Selection Notes
Select this model when a single-stage filter is sufficient for the application's noise environment. The 20 A rating suits moderate power loads. Verify that the leakage current characteristics meet safety standards for the intended enclosure. Consider the physical size constraints of the chassis mount location relative to the component dimensions.
Part Context
This component belongs to Delta Electronics' general-purpose filter series. It is engineered for standard AC power line protection. The design prioritizes compliance with international safety certifications while maintaining a compact form factor suitable for panel integration in various electrical enclosures.
Replacement Considerations
Consult official substitution lists for verified equivalents. Generic replacements may not match the specific leakage current or attenuation characteristics required for compliance.
