20DPCG5C

Overview

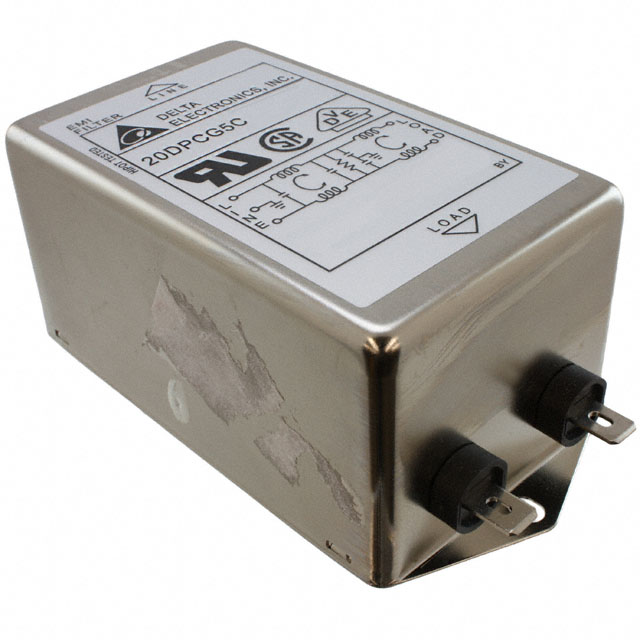

The Delta Electronics 20DPCG5C is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a two-stage configuration with a rated current of 20 A and operates at frequencies of 50/60 Hz. The unit supports AC voltage ratings of 115 V and 250 V. Termination is achieved via lug-lug connections. The component complies with RoHS3 standards and holds CSA, UR, and VDE certifications.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount installation for secure integration
• Lug-lug termination style for reliable electrical connection

Applications

• Switching transient filtering
• General purpose EMI suppression
• Industrial equipment power input stages

Procurement Notes

Verify the specific manufacturing date code against the supplier's inventory to ensure compliance with current RoHS3 regulations. Confirm that the lug dimensions match the terminal block specifications of the target application. Check for any recent Product Change Notifications (PCN) regarding material substitutions or packaging updates before finalizing the order.

Selection Notes

Select this model when a two-stage solution is required for 20 A single-phase applications. Ensure the operating environment accommodates chassis mounting constraints. Verify that the lug-style terminals are compatible with the available wiring harnesses. Compare leakage current specifications if strict safety isolation limits are mandated by the system design.

Part Context

This component belongs to the DP series of power line filters from Delta Electronics. The series offers various current ratings and voltage configurations for different industrial needs. The 20DPCG5C specifically addresses mid-range current requirements in compact chassis-mounted form factors.

Replacement Considerations

Consult official substitution guides for equivalent current ratings. Verify pinout compatibility and physical footprint dimensions before swapping with other chassis-mount filters.
